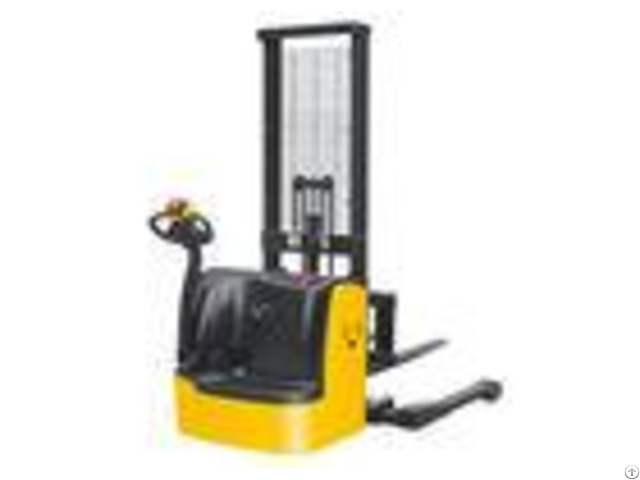

Straddle Legs Electric Lift Pallet Stacker Safe Design Adjustable Forks - China

1500kg AC control electric pallet stacker with straddle legs and adjustable forks Quick Details: Description: electric pallet stacker with straddle legs Capacity: 1500kg Max.

lifting height: 5600mm Width overall forks: 200-800mm Travel speed, laden/unladen: 5.8/6km/h Lifting speed, laden/unladen: 0.11/0.14m/s Lowering speed, laden/unladen: 0.12/0.12m/s Battery: 24V240AH Straddle legs with adjustable forks Advantages: Safe and efficient design # The handle is provided with an emergency reverse switch, make the electric pallet stacker operation more safe.

# Built in unloading valve to protect the electric pallet stacker from overloading and improve the reliability of it.

# Emergency power off switch, stepless speed change control.

# Both the side door and the battery cover can be opened, and the battery can be pulled out from the side, which is beneficial to the exchange and maintenance of the battery.

Structural optimization design # Low center of gravity design, with good stability.

# The vertical driving wheel, the driving unit with small turning radius and wheel replacement and maintenance is simple and convenient, the motor has better dustproof, waterproof effect, so that the brake and motor is more durable, reliability is being improved.

# The adjustable balance wheel structure makes the four points in one plane and has good stability.

Easy maintenance design # Low voltage protection design to make the battery service life longer.

# The electric whole design pattern, the line is clean and tidy, beautiful, assemble, debug, the maintenance is convenient.

# CANbus technology simplifies the line and enhances the reliability of the whole electric pallet stacker.

# Holzer sensors reduce wear and tear of electronic components and increase service life.

AC (function) - - - - SPECIFICATIONS | Model | | CTDR15-II | Load capacity | kg | 1500 | Load center distance | mm | 600 | Load distance, centre of drive axle to fork | mm | 677 | Fork height, lowered | mm | 70 | Tyre size, front | mm | 250*70 | Tyre size, rear | mm | 80*84 | Additional wheels (dimensions) | mm | 150*60 | Height, mast lowered | mm | 2480 | Free lift (option 2500-3500mm) | mm | 1940 | Max.

lifting height | mm | 5600 | Height, mast extended | mm | 6180 | Height of tiller in drive position min.

/max.

| mm | 670/1300 | Overall length | mm | 1980 | Length to face of forks | mm | 915 | Overall width | mm | 1560 | Fork dimensions | mm | 35/100/1070(1150) | Width overall forks | mm | 200-800 | Aisle width for pallets 800*1200 lengthways | mm | 2465 | Turning radius | mm | 1610 | Travel speed, laden/unladen | km/h | 5.8/6 | Lift speed, laden/unladen | m/s | 0.11/0.14 | Lowering speed, laden/unladen | m/s | 0.12/0.12 | Battery | V/Ah | 24/240 | Service weight | kg | 1450 | - - - -
