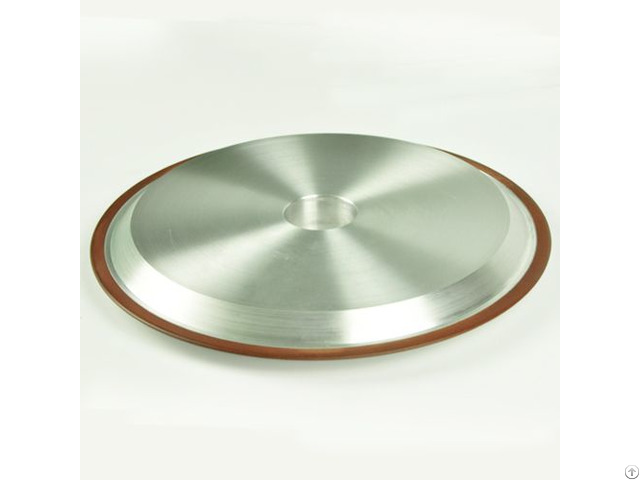

14a1 Resin Bond Diamond And Cbn Grinding Wheel - China

Introduction to resin diamond grinding wheel

The resin bond diamond wheels are mainly used for grinding tungsten carbide and non-metal materials.

Various kinds of dimensions and shapes are available, such as flat shapes, cup shapes and dish shapes, etc.

Production of diamond grinding wheel with resin binder:

Resin as the bond material, metal powder, metal oxide, ordinary abrasive as filler mix to make the binding agent.

The abrasive and binder are mixed into the molding material according to the requirements of concentration.

The product is formed by hot pressing, curing and subsequent processing

Resin bond diamond grinding wheel model: 1: parallel grinding wheel2: parallel arc grinding wheel3: double-sided concave grinding wheel4: double bevelled grinding wheel5: bowl wheel.

Feature:

1 - Diameter: 110-400mm available

2 - Diamond grit: #100, #150, #200, #300, #400, or upon your request

3 - Thickness: 10mm-32mm, other size is available

4 - Hole size: 20mm, 25.4mm, 30mm, or as your request

5 - shaped wheel, tapered one side or two sides and so on

6 - High Cutting Efficiency, Good Self-Sharpening, Less Blocking, Reducing The Grinding Burn Occurs When The Phenomenon Of Work

7 - Good Flexibility Will Help To Improve The Surface Roughness, Mainly Used For Rough Grinding, Semi-Fine Grinding, Polishing And Other Processes

8 - Compared To Conventional Silicon Carbide, Resin Diamond Wheel Has Good Material Removal Rates, Longer Wheel Life And Lower Grinding Costs

Resin Bond Diamond Wheels Generally Remove Material Up To Ten Times Faster Than Metal Bond Wheels

Application of Resin diamond grinding wheel

1： machining tungsten carbide

2：ceramic materials

3：magnetic materials, 4：silicon materials

5：thermal spraying alloy materials
