900w 24v Polycrystalline Off Grid Solar Panel Kit For Homes Rvs - China

price: contact company for price

The Eco-Sources completed off-grid solar panel kit composed of 6pcs 150W poly solar panels, 1pc 45A charge controller, 1pc 1500W pure sine wave inverter, 1pc solar cable, MC4 Branch connectors, 6 pcs mounting Z brackets, It’s a perfect off-grid solar power system for homes, RVs, trailers, motorhomes, caravans, boats and industrial energy supplementation.

Features

1 - Complete 24 volts off-grid solar power kit for charging 24 volts battery bank and DC/AC appliances.

2 - High-efficiency silicon solar cells ensure high performance of solar modules and create maximum power output.

25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate.

3 - Easy to install with pre-drilled holes on the back of panels for fast mounting and securing.

Each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connectors.

4 - By-pass diodes are pre-installed in the waterproof IP-65 rated junction box to minimize power drop caused by shade and ensure excellent performance in low-light environments.

Specification

150W Poly Solar Panel Rated power: 150W

Open circuit voltage (Voc): 22.4V

Max.

Voltage (Vmp): 18V

Short circuit current (Isc): 9.20A

Max.

current (Imp): 8.33A

Cell Efficiency(nc): 17%

Cell Size: 6*6inches/156*156mm

Number.

type and arrangement of cells: 36pcs Poly-Crystalline Silicon(4*9)

Module Efficiency(nm): 15.1%

Max-System Voltage(VDC): 1000v

Output Power Tolerance: ±3%

Temperate coefficient of Isc: +0.05%/ ℃

Temperate coefficient of power Voc: -0.38%/℃

Operating Temperature range: -40℃~+90℃

SLA Battery Voltage: 12V

Size: 59.1″*26.4″*1 .

6″ (1500*670*40mm)

Weight: 26.5lbs/12kg


Cable Length: 35.4inches/900mm 1500W Off Grid Pure Sine Wave Inverter Output Volt: 100/110/120VAC

Continuous Power: 1500W

Surge Power: 3000W

FREQUENCY: 60Hz

Efficiency: >90%

USB Output: 5V

Input Range: 21-30VDC

Working Input: 24VDC

Fuse: 20A

Low battery alarm: 21+0.5V

Low battery shut down: 20+0.5V

Over voltage shut down: 30.5+0.5V

Overload shut down: 1800W over 10 seconds

Overheating shut down: >75℃

Over Thermal Protection: shut down the output

Working Temperature: -10℃~+50℃ 45 A PWM Solar Charge Controller Regulator with timer and light sensor

maximum charging current: 45A

maximum loading current: 45A

Rated voltage: 12/24v

temperature compensation: -4.7mv/cell· °C

environment temperature: -20 °C ~ +50 °C

working tacitly approved: charge off voltage 13.8v/27.6v (±0.2)

load off voltage: 10.8v/21.6v (±0.2)

load on voltage: 12V / 24V (±0.2)

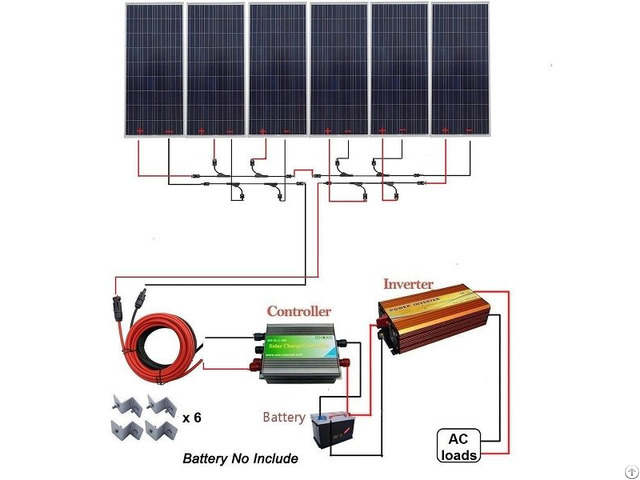

Connection: The charge controller has 3 pairs of 2 terminals, Solar, Battery and Load, pls connect your battery to Battery terminals, the Load terminals to DC loads you might have, and your PV array to the Solar terminals.

Installation

1 - Connect your 24 volts battery bank to the Battery terminals of charge controller.

2 - Connect the DC load you might have to the Load terminals of charge controller.

3 - Connect PV (Solar) array to Solar terminals of the controller.

4 - Connect DC terminals of the inverter to your battery.

5 - Connect AC output of the inverter to your AC appliances.


Company Contact:


  • Phone: 86-592-3109858

  • Address: Room 401, Hongye Building, Innovation Park, Xiamen , Fujian , China

  • Email: Email


Published date: September 6, 2018

  • Business Description: Eco-Sources is one of the leading renewable energy products manufacturers, We specialize in off-grid solar & wind power system and components such as solar panels, wind turbines, batteries, inverters, charge controllers and solar trackers, also include solar appliances like solar water pump, solar street light etc.

    We have been integrating R&D, mass production, sale and service under one roof, to provide customers with high-quality products since 2007 - With more than 10 years of experience in this field and through our hard work, we have got utility model patent certificates for solar controller and solar hat.

    We insist on a management theory of customer service is the core to unceasingly improve our core competitiveness.

    We acquired advanced equipment from China and abroad, such as dust-free purification plant, automatic laminating machines, sophisticated IPQC and FQC testing machines.

    Meanwhile, we absorb in domestic and overseas technicians actively and scientific management mode constantly, thus we keep improving and innovating.

    All our efforts enable our product quality to stable and reliable.

    Now our products are exported to Africa, Europe, the US, the Middle East and Asia.

    Eco-Sources is dedicated to providing sustainable and clean energies for our clients and making contribution to environmental protection.
