Acid And Alkali Resistance Dual Plate Check Valve - China

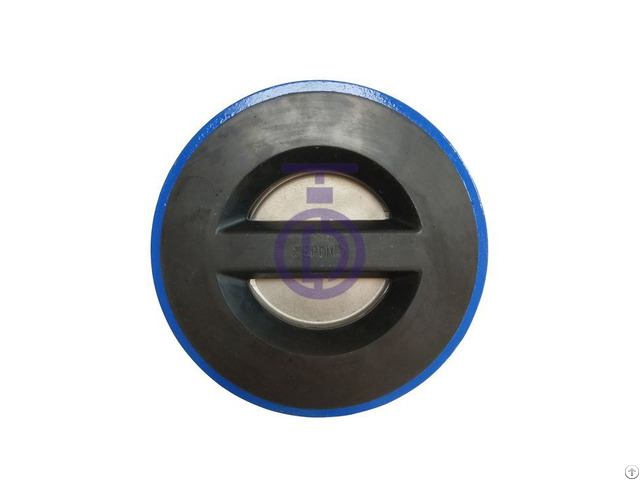

Acid and Alkali Resistance Dual Plate Check Valve

1 - The double disc check valve is built with stainless, C954/C958, 1.4469 trim to give years of trouble free operation.

2 - The double disc check valve can be installed in either horizontal or vertical pipelines that carry clean water or air.

3 - The double disc check valve is designed to provide flow in the direction of the arrow marked on the outside nameplate, and instantaneously close upon sensing flow reversal.

4 - The nameplate will also indicate valve size, model number, working pressure and materials of construction.

Product Description

Design and Manufacture Conform to API 594

End flange dimensions Conform to ANSI B16.5

Face to Face dimensions Conform to API 594

Testing Conform to API 598

Product Dimensions

MATERIALS OF PARTS

Number Part Name Material

1 Body CF8/WCB+F6

2 Disc CF8/WCB+F6

3 Torsional spring SS304/SS410

4 Hinge pin SS304/SS410

5 Plate-lug bearing SS304/SS410

6 Bolt Carbon steel

7 Plug gasket SS304/SS410

8 Plug Carbon steel SIZE 2'' 2.5'' 3'' 4'' 5'' 6'' 8'' 10'' 12'' 14'' 16'' 18'' 20'' 24''

L 60 67 73 73 86 98 127 146 181 184 191 203 219 222

D 103 122 135 175 195 220 277 337 407 448 512 547 604 715

D1 51 65 80 102 127 152 203 254 305 350 400 450 500 600

D2 56 73 88 108 132 160 210 266 310 355 405 455 505 605

Advantage

Why Choose Us?

1 - We have been manufacturing and supplying valves and valve parts for more than 12 years.

2 - We are the original quality manufacturer, where you can obtain offer with quality assurance.

3 - The products have the traceability, which saves time to repalce parts.

4 - We also have a good reputation on customers from all over the world.

5 - Our upgrated new products and designed drawings are very popular in marine and industrail fields.

Our company is one of the biggest china check valve Manufacturer.
