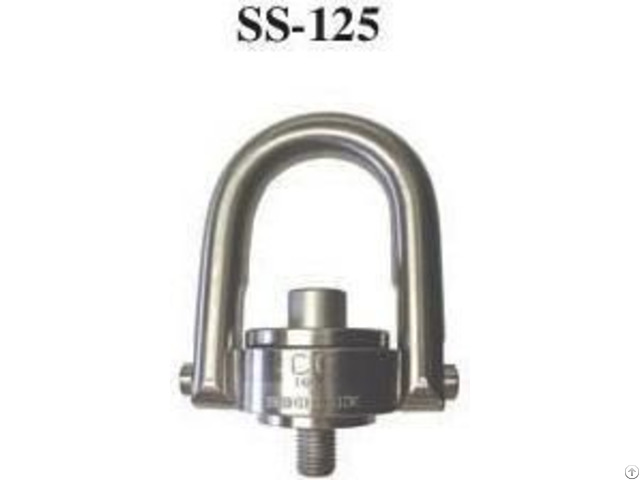

Crosby Ss 125 Stainless Steel Swivel Hoist Rings - India
price: contact company for price
Crosby ss 125 stainless steel swivel hoist rings :
all components are 316 stainless steel, except bolt retainers, which are made from 15-7 ph (uns15700) magnetic stainless steel.
available in capacities from 400 lbs.
to 25, 000 lbs.
rated at 100 percent at 90 degree angle.
each product has a product identification code (pic) for material traceability, along with the working load limit and the name crosby or "cg" stamped into it.
individually proof tested to 2 times the working load limit with certification.
fatigue rated to 20, 000 cycles at 1-1/2 times the working load limit.
washer is color coded for easy identification (red - unc thread).
bolt specification is 316 stainless steel socket head cap screw to astm f 837 group 1 (316).
allthreads listed are unc.
bolt size identification: the size of the bolt will be stated as in the drawing below.
illustration shows meaning of each dimension given.
note: for special applications, see page 396.
frame 2 and larger are rfid equipped.
