Dual Axis Solar Tracking System With 12v Linear Actuator And Track Controller - China

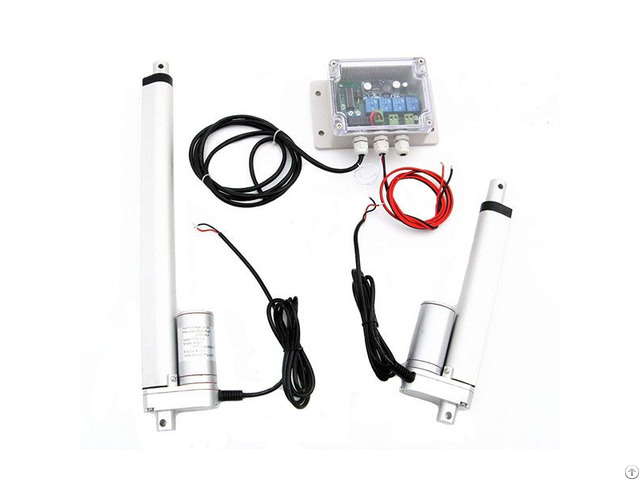

The Eco-Sources complete dual axis solar tracking system includes 12V 6″ & 12″ stroke linear actuator, dual axis controller with remote, complete mounting kits: solar panel mounting arms, main tracker mount, fasteners, main poles for solar panel mount.

Features

1 - Complete solar tracking kits: 12V 6″ & 12″ Linear Actuator & Remote Controller & Mounting Accessories.

2 - Linear Actuator: 12V motor has a gearbox and is rated to hold up to 330 lbs when not moving.

An all-metal housing and is water-resistant and sealed against dust for rugged durability.

3 - Dual axis controller: control the dual axis linear actuator to make the solar panel to follow the Sunlight, keep the solar panel always face the sunlight.

Smart weather detector, stop working in cloudy day.

4 - Material: Mounting pole is made from the galvanized iron tube.

Mounting arms are all made from Aluminum 6061.

5 - Perfect tracking mounting kit for solar panel system, improve solar power efficiency.

Specification 6 Inch Linear Actuator Input Voltage: 12V DC

Maximum Load: 330lbs (1500N)

Stroke length: 6 inches (150mm)

Travel Speed: 0.22 in/sec (5.7 mm/s)

Duty Cycle: 25%

Starting Current (No-Load): 0.8A

Maximum Current: 5A

Limit Switches: Pre-installed

Gears: Lubricated Metal Gears

Weather Resistance: IP54 Rated

Color: Silver
