Explosion Proof Compact Pressure Sensor With 4 20ma And High Accuracy 0 2 Percent Fs - China

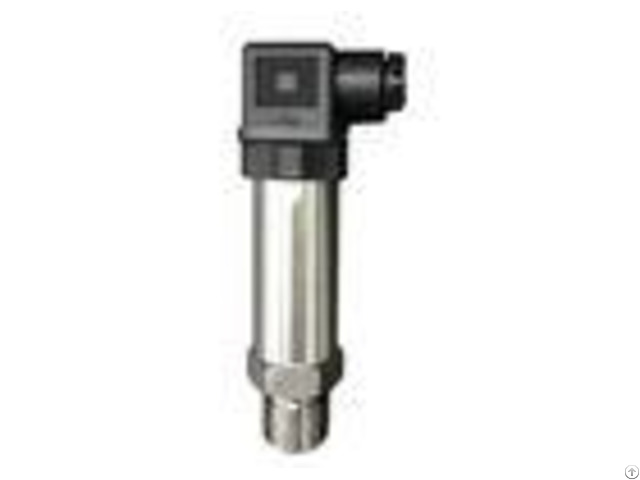

Explosion Proof Compact Pressure Sensor with 4~20mA and High Accuracy 0.2%FS WNK805 small size pressure transmitter adopts imported high accuracy and high stability chips and excellent assembly technology, by taking precise temperature compensation, and puts circuit board in safe stainless steel housing.

Diffused silicon strain gage bridge is put on sensitive chips, thus switching of pressure and power is in one and same device, ensuring compact and reliable structure.

WNK805 is widely applied in gauge or absolute pressure measurement in fields of aerospace, communication, irrigation works, oil, chemical, power, meteorology, laboratory and etc.

It could also be used for measuring negative pressure, vacuum degree and etc.

Quick information: # High performance piezoresistive silicon pressure sensor # Optional 4~20mA, 0~5V, 1~5V, 0~10V outputs # OEM, ODM & customization available # Stainless steel 316L housing # Intrinsic safety and explosion-proof certificates # High protection: IP65 # Suitable for air, steam, water and fuel oil application Detailed Technical Info: - - - - Compact Pressure Transmittter with SS304 Housing | Pressure range | 0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa | Rangedown | 100: 1 | Permissible temperature | Compensation Temperature | Media Temperature | Environment Temperature | Storage Temperature | -30~70 | -20~85 | -20~85 | -45~85 | Accuracy | 0.1%FS, 0.25%FS, 0.5%FS, 1.0%FS | Output signals | 4~20mA, 0~5V, 1~5V, 0~10V | Long-term stability | 0.25%FS/year | Power supply | 24VDC | Protection class | IP65 | Electrical connection | DIN43650, M12, Direct lead, Small Hirschman | Mechanical connection | G1/2, M20*1.5, 1/2NPT, 1/4NPT, customization | Repeat | 0.05, 0.1%FS | Overload | 1.5~2 times | Housing material | SS304 | - - - - Competitive Advantages: 1 - Founded in 2004, over 13 year professional research, developing and production experience; 2 - Experienced and professional R&D team to provide customization services; 3 - Producing transmitter core elements- PCB, supplying PCB for transmitter producers; 4 - Highest accuracy up to 0.05%FS; 5 - Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs; 6 - Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
