Fire Fighting Water Tank Submersible Level Transmitter 0 5 4 5v I2c - China

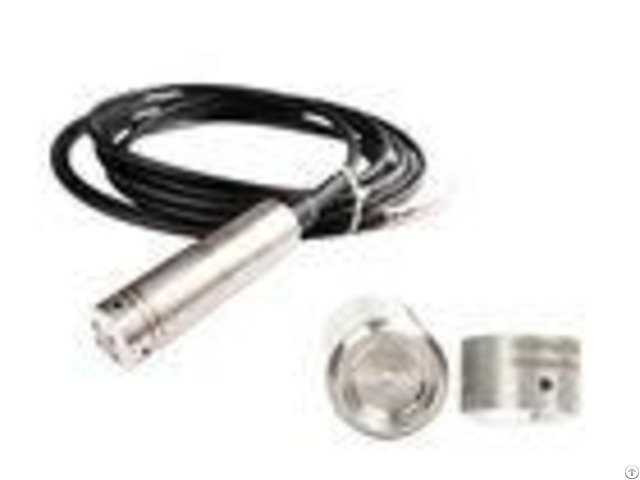

Anti-proof PTFE Tank Liquid Submersible Level Sensor 4~20mA WNK immersion water level sensor transducer is suitable for liquid level, pressure or depth measurement.

With high accuracy and high stability diffused silicon internal sensor, WNKlevel sensoroffers good long-term level monitoring.

Made of stainless steel housing and SS316L diaphragm, WNK sensor can be used in most industrial liquids and oils.

We have two types of input cable: Polyvinyl Fluoride and PTFE, which are suitable for non-corrosive and corrosive medium measurement.

Each level sensor housing is tested in-house via a helium leak tester to ensure proper protection.

Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank.

Our submersible fuel / water level sensor can be used to measure water level, fuel level and other liquid level; well depth; groundwater level; bore well, underground water, river etc, .

Quick information: # Water proofing, ingress protection level up to IP68; # Wide application range 0-0.5~200m H2O; # High accuracy up to 0.2%FS; # Various output 4~20mA, 0~10mA, 0~5V, 1~5V and etc; # High overload 1.5 times of full scale; # Long-term stability 0.25%FS/Year; # Corrosive resistance immersion cable of PTFE; # Whole stainless steel 304 or 316 housing; # OEM, ODM, customize; Detailed Technical Info: - - - - Submersible Level Sensor | Adopting diffusion silicon oil-filled sensor | Output | 4~20mA, 0-10mA, 0-5V, 1-5V and others | Level range | 0-0.5~200mH2O | Overload | 150% of sensor range | Measuring medium | Liquid | Accuracy | 0.2%FS, 0.5%FS | Stability | 0.25%FS/ year | Housing material | Stainless steel | Cable material | Polyvinyl Fluoride, PTFE | Power Supply | 24VDC | Ambient temperature | -20~85 | Process temperature | -20~85 | Compensation temperature | -20~85 | Protection class | IP68 | - - - - Competitive Advantages: 1 - Founded in 2004, over 13 year professional research, developing and production experience; 2 - Experienced and professional R&D team to provide customization services; 3 - Producing transmitter core elements- PCB, supplying PCB for transmitter producers; 4 - Highest accuracy up to 0.05%FS; 5 - Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs; 6 - Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.

Company Contact:

• Posted By: HEFEI WNK SMART TECHNOLOGY CO., LTD.

• Phone: 86-551-65369569

• Address: 4/F,B6, No.168, Xiangzhang Road, Hi-tech District, 230088, Hefei, Anhui, China, Hefei , Anhui , China

• Email:

• Website: https://www.pressuresensortransmitter.com

• Business Description: Founded in 2004, HEFEI WNK SMART TECHNOLOGY CO., LTD is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument.

  We devote to developing, manufacturing and selling of automation control system.
