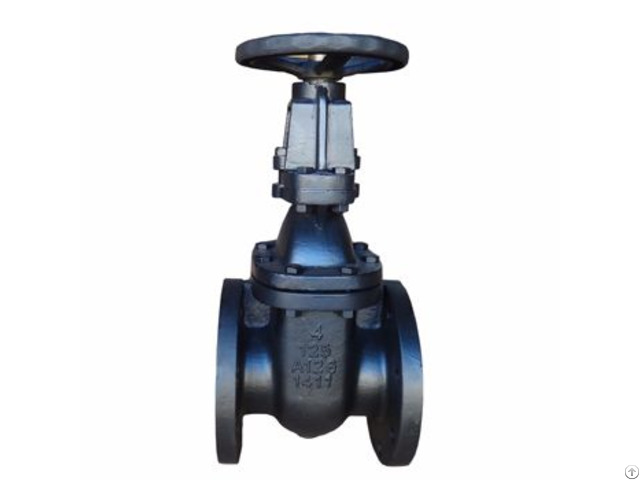

Flange Gate Valve Carbon And Stainless Steel - China

CLASS 150~1500 GATE VALVE

OS&Y, Rising stem, Flexible Wedge

Bolted Bonnet, Threaded or welded seat ring

Body: WCB, WC1, WC6, WC9, C5 C12, CF8, CF3, CF8M, CF3M

Stem: 2Cr13, 38CrMoAl, 25Cr2Mov, F304, F316, F304L, F316L

Sealing Face: 13Cr, STL, PTFE, Nylon

Standards compliance

Design and Manufacture: ANSI B16.34, API600, API6D, API603, BS1414

Face to face (end to end): ANSI B16.10, API6D

Flanged connection: 2"~24" to ANSI B16.5

22", 26"~36" to MSS-SP-44 or to API605 on Request

Test and inspection: API598, API6D

Butt welded end: ANSI B16.5

A.

Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation

B.

Grub screw: Secures yoke nut in the bonnet

C.

Grease nipple: Supplies lubricant to the mating parts

Working Temperature: Body: WCB: not more than 425 degree centigrade

WC1: not more than 450 degree centigrade

WC6: not more than 540 degree centigrade

WC9: not more than 570 degree centigrade

C5 C12: not more than 540 degree centigrade

CF8, CF3, CF8M, CF3M: not more than 600 degree centigrade

Suitable for: 1) For Water, Steam, Petroleum(Body: WCB, WC1, WC6, WC9, C5 C12)

2) For Nitric acid, Acetic acid(Body: CF8, CF3, CF8M, CF3M)
