Food Medical Sanitary Pressure Transducer 4 20ma With Led Display - China

Food Medical Usage Sanitary Pressure Transducer 4~20mA with LED Display WNK805 small size pressure transmitter adopts imported high accuracy and high stability chips and excellent assembly technology, by taking precise temperature compensation, and puts circuit board in safe stainless steel housing.

Diffused silicon strain gage bridge is put on sensitive chips, thus switching of pressure and power is in one and same device, ensuring compact and reliable structure.

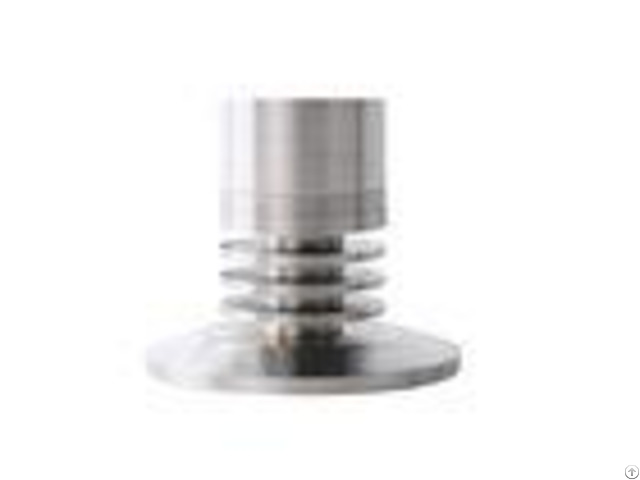

Sanitary type WNK805 is specially designed for food and medical application.

It has standard 50.5mm and 60mm outer diameter, connecting with process sanitary pipe directly and easily.

Sanitary clamp type pressure transmitter is widely used in food, pharmaceutical, wine making, fermentation and other industries.

It is divided in normal sanitary, high temperature cooling type, digital display types.

High accuracy and high stable diffused silicon pressure chip is adopted for the sanitary pressure transmitter production, and it transforms medium pressure to 4~20mADC standard signal.

Features: # High performance diffused siliconpressure sensor # 4~20mA, 0~5V, 1~5V, 0~10V and other outputs # Tri-clamp dimensions of 50.5mm or 64mm # Wetting diaphragm SS316L # Stainless steel 304 housing # Media temp range -30~85; for higher temperature, cooling element will be added # High protection: IP65 # Suitable for air, steam, water and fuel oil application # Intrinsic safety and explosion-proof certificates # CE, ISO9001(2015) certificates # OEM, ODM & customization Application fields: 1 - Food hygiene industry 2 - Paper industry 3 - Sewage level measurement 4 - Beverage tank level measurement 5 - Pipeline level measurement 6 - Pharmaceutical and biological products processing Detailed Technical Info: - - - - Compact Pressure Transmittter with SS304 Housing | Pressure range | 0~600bar | Rangedown | 100: 1 | Permissible temperature | Compensation Temperature | Media Temperature | Environment Temperature | Storage Temperature | -30~70 | -20~85 | -20~85 | -45~85 | Accuracy | 0.2%FS, 0.5%FS, 1.0%FS | Output signals | 4~20mA, 0~5V, 1~5V, 0~10V | Long-term stability | 0.25%FS/year | Power supply | 24VDC | Protection class | IP65 | Electrical connection | DIN43650, M12, Direct lead or others | Mechanical connection | G1/2, M20*1.5, 1/2NPT, 1/4NPT, customization | Repeat | 0.05, 0.1%FS | Overload | 1.5~2 times | Housing material | SS304 | - - - - Competitive Advantages: 1 - Founded in 2004, over 13 year professional research, developing and production experience; 2 - Experienced and professional R&D team to provide customization services; 3 - Producing transmitter core elements- PCB, supplying PCB for transmitter producers; 4 - Highest accuracy up to 0.05%FS; 5 - Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs; 6 - Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
