Gate Valve Body - China
price: contact company for price

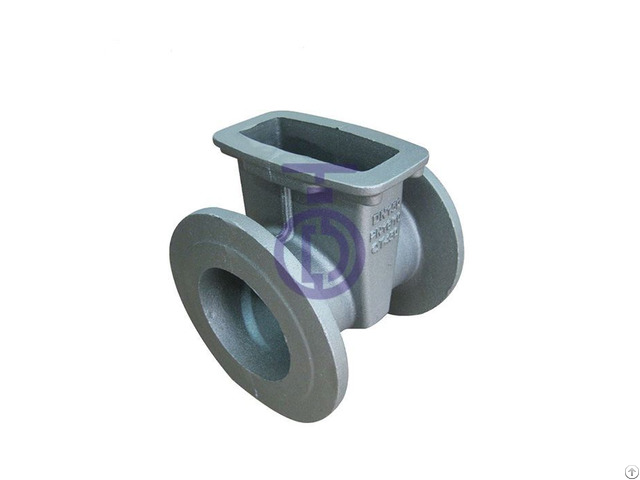

Gate Valve Body
Design and Manufacture Conform to MSS SP-85
Flange dimensions Conform to ANSI B16.1 CLASS125
Face to Face dimensions Conform to ANSI B16.10
Testing Conform to MSS SP-85
Sutiable Media Water OilGas
The Choice of the Material
BODY Cast iron/Ductile iron/AL-bronze/Stainless Steel/Duplex Stainless Steel
DISC Dutile iron/AL-bronze/CF8/CF8M/S S201/SS302/SS316
BONNET Ductile iron/AL-bronze/Duplex Stainless Steel/CF8/CF98M
STEM Carbon Steel/SS410/SS416/SS420/S S304/SS316/MONELO K500
SEAT NBR(buna-N)/EPDM/PTFE/Nat ure Rubber/VITON/Hypalon
SHORT BUSHING PTFE
LONG BUSHING PTFE
O-ring NBR/EPDM
PIN SS403/SS316/MONEL K500/Duplex Stainless Steel
Advantage
The gate valve has a simple shape, short structure length, great manufacturing process and wide application range.
cast iron gate valve flow resistance is small, applicable pressure, temperature range, medium flow direction is not restricted, good sealing performance.
It can be widely used in water supply, construction, petroleum, industry, electric power, ship and energy system as regulating and intercepting device.
Company Contact:
- Posted By: Tianjin Tanghai Valve Manufacturing CO.,LTD.
- Phone: 18526396136
- Address: No. 3, Chemical Road, Zhaishang Street, Binhai New District, Tianjin, P. R. China., tianjin , tianjin , China
- Email:
- Website: https://www.tanghaivalve.com/
Published date: November 23, 2019
- Business Description: Butterfly Valve, Valve Parts, Gate valve, Check valve, Globe valve Supplier China
Our company is one of the biggest valve supplier in China.
The main produces are Butterfly vale, Gate valve, Check valve, Globe valve, strainers etc.
