1070CFM/24BAR High Pressure Mobile Electrical Air Compressors

Product Description

TEWATT 1070CFM/24BAR high pressure Electrical air compressor adopt state of the art high efficiency famous motors, low consumption, low maintenance cost and low noise strict comply with the NEMA and IEC standard.

Tewatt high pressure motor Compressors always win the market and customers trust by its low consumption, high efficiency, easy maintenance, easy operation, and long service life characters.

It Always meet the operation requirements in extreme high & low temperature, heavy dust, high altitude environment.

Those applications are Widely used such as tunneling project, ship sand blasting, infrastructure construction, oil/gas field, mine blasting and other drilling fields which have electricity supply.

Features&Benefits:

Tewatt Screw Air-end Super Rotor, low speed (5 years/10000 hours warranty)

International Warranty Service covered high efficient motor with IP54 protection

High standard Controller System, easy to play

Safe and Reliable Air Filter System

Advanced &Energy-saving Intake System .

Technical Specifications:

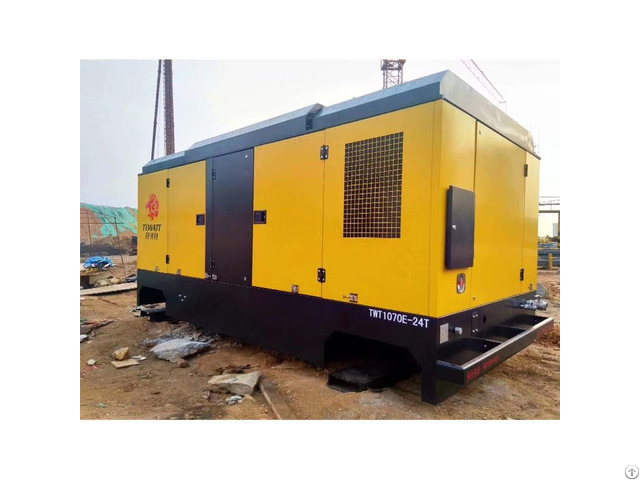

Model TWT1070E-24T

Compressor Stage Two Stage

Free Air Delivery (CFM/ M3/min) 1070/30.3

Working Pressure (psig/bar) 348/24 bar

Screw Oil Volume-(L) 140L

Motor

Motor Model YE2-355M2-4

Rated Power (KW) 250 KW

Rated Speed/Idle (rpm) 1490

Connector Size*Qty G3/4" *1, G 2"* 1

Wheel Size*Qty 7.50-16*4

Weight (Kgs) 5500Kg

Dimension (mm) 4885*2100*2700mm

Noise {dB(A)} 72±3

Working Temp.

(℃) -10℃~50℃(special conditions can be customized)

Note: Specifiations are subject to change without further notice.
