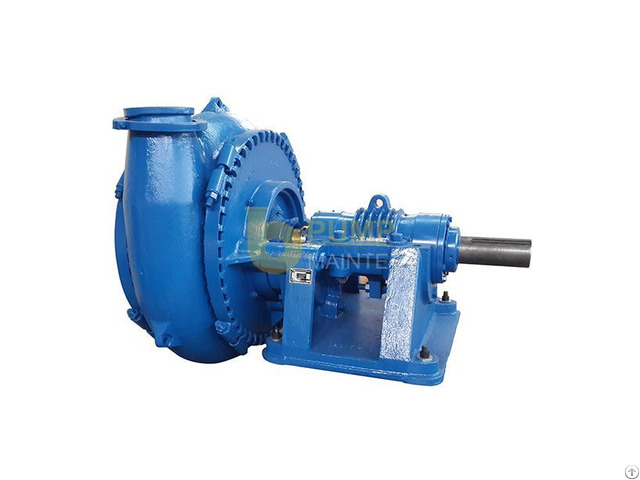

Horizontal Centrifugal Mud Gravel Slurry Pump Sand Suction Pump

Structural characteristics

G-type gravel pump is single-stage, cantilever and horizontal centrifugal structure.

The impeller has wide flow, strong flow capacity and excellent cavitation performance.

The single-shell clamp type connection structure can be installed at any angle according to the needs.

Shaft seals can be filled with packing, impeller seals, mechanical seals

Gravel Pump Manufacturer: shijiazhuang mainte slurry pump co., ltd

Applicable working conditions

Widely used in blast furnace slag, alumina, subway shield, sand absorption, river dredging, especially suitable for conveying coarse particle medium or high temperature slurry.

Performance range

Discharge range: 100 ~ 350mm

Flow range: 150~2880m3/h

Head range: 10 ~ 90m

Model meaning

G, GH series gravel pump basic parameters G, GH Pump model flowQ(m3/h) HeadH(m) Rotating speedn(r/min) EffectiVenessη(%) Must have NPSH margin(m) Discharge port diameter(mm) Suction port diameter(mm)

6/4D-G 108～216 6～52 600～1400 52 2.0～3.0 100 150

8/6E-G 180～430 8～45 800～1400 60 2.0～3.5 150 200

8/6F-GH 216～540 18～90 500～1100 71 2.0～4.0 150 200

10/8F(S)-G 360～750 10～52 500～1000 65 2.0～4.5 200 250

10/8S-GH 432～1080 18～80 500～950 72 2.0～4.0 200 250

12/10G-G 576～1120 10～60 400～850 65 2.0～4.5 250 300

12/10G(T)-GH 720～1800 14～75 360～700 73 2.0～6.0 250 300

14/12G-G 900～2230 10～65 300～700 68 2.0～6.5 300 350

16/14G-G 1440～2820 15～47 300～500 70 2.0～6.0 350 400

16/14TU-GH 1620～2520 22～70 300～500 72 2.0～5.5 350 400

18/16TU-G 1250～2880 10～47 250～500 72 2.0～5.2 400 450

18/16TU-GH 2160～4220 25～90 250～500 78 2.0～7.5 400 450

Shijiazhuang mainte slurry pump Co., Ltd. Is a scientific and technological innovative pump production company integrating R & D, production, marketing and service of desulfurization pump, slurry pump, dredging pump, sewage pump, non blocking centrifugal pump, submersible slurry pump, clean water pump and other products.

The company has strong technical production capacity and perfect service system.
