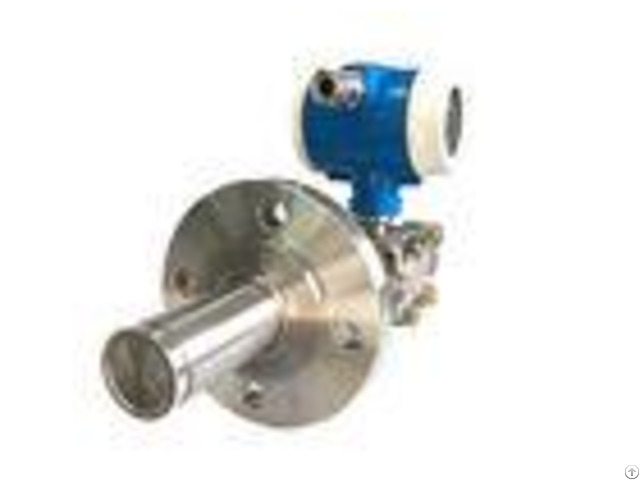

Industrial High Quality Anti Corrosive Explosion Isolated Ss304 Flange Level Transmitter - China

Industrial High Quality Anti-corrosive Explosion Isolated SS304 Flange Level Transmitter WNK5 series pressure transmitter is the high-performance products among WNK pressure transmitter series.

It transforms physical signal of pressure, differential pressure and level to standard signal via collecting cell sensor and digital processing circuit.

WNK5 adopts advanced specified integrated circuit digital technology to realize best uniformity of accuracy and signal.

Each set of transmitter is ambient temperature compensated, ensured highest accuracy and lowest drift of transmitters in wide working temperature range.

Quick Information: # High accuracy: up to 0.05%FS; # Output: 4~20mA, Hart # Excellent long-term stability: long-term drift 0.15%URL for 5 years; # Range ratio: 100: 1; # Module design: Changeable electronic module; # Explosion Proof: Exia II CT4, CT6; # Water Proof: IP66/67; # High Temperature Resistance: Highest temperature up to 280 with diaphragm sealing; # High Pressure Ability: Max Pressure up to 700bar.

Detailed Technical Information: - - - - Single Flange Differential Pressure Level Transmitter | Pressure range | -100kPa~4MPa | Rangedown | 100: 1 | Permissible temperature | Compensation Temperature | Media Temperature | Environment Temperature | Storage Temperature | -30~70 | -40~120 | -40~85 | -45~85 | Accuracy | 0.075%FS | Output signals | 4~20mA, HART, Profibus-Pa, customization | Long-term stability | 0.15%URL, 5 years | Power supply | 10.5~55VDC, 24VDC | Protection class | IP66/67 | Mechanical connection | Flange, G1/2, M20*1.5, 1/2NPT, 1/4NPT, customization | Temperature drift | 0.03%F.S./10 | Anti-shock | As per test of GB/T1827.3/IEC61298-3, 0.1%URL | Housing material | Aluminum alloy | - - - - Competitive Advantages: 1 - Founded in 2004, over 13 year professional research, developing and production experience; 2 - Experienced and professional R&D team to provide customization services; 3 - Producing transmitter core elements- PCB, supplying PCB for transmitter producers; 4 - Highest accuracy up to 0.05%FS; 5 - Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs; 6 - Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
