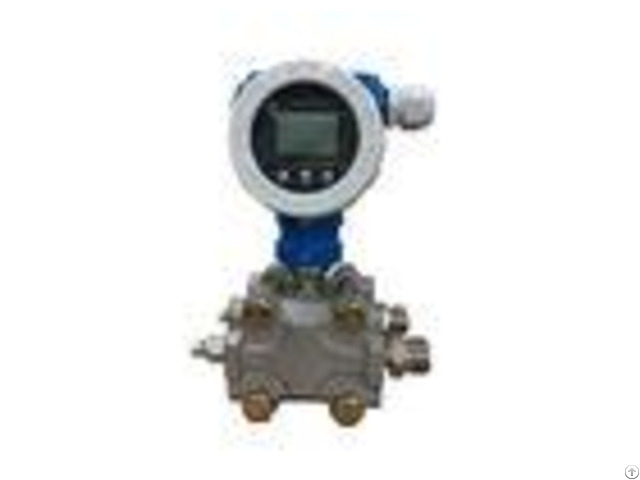

Industrial Tank Capacitive Differential Pressure Transmitter With 4 20ma Hart Explosion Proof - China

Industrial Tank Capacitive Differential Pressure Transmitter with 4~20mA + Hart Explosion Proof WNK5 series pressure transmitter is the high-performance products among WNK pressure transmitter series.

It transforms physical signal of pressure, differential pressure and level to standard signal via collecting cell sensor and digital processing circuit.

WNK5 adopts advanced specified integrated circuit digital technology to realize best uniformity of accuracy and signal.

Each set of transmitter is ambient temperature compensated, ensured highest accuracy and lowest drift of transmitters in wide working temperature range.

WNK55 capacitive differential pressure transmitter supports outputs of 4~20mA and 4~20mA+ Hart.

Its miminum measuring pressure is 10KPa.

With good long-term stability and accuracy, WNK50 is widely applied in oil&gas, cement, petrol, petrol chemical, power, steel and many industrial fields.

Quick Information: # High performance industrial differential pressure transmitter # High accuracy up to 0.05%FS; # Output: 4~20mA, 4~20ma+Hart; # Display LCD # Excellent long-term drift 0.15%URL for 5 years; # Flange material SS314; # Ingress protection level IP66/67; # Module design: Changeable electronic module; # Exia II CT4, Exd II CT6 explosion proof certificates # High Pressure Ability: Max Pressure up to 700bar.

# CE, ISO9001: 2015, Explosion proof; # OEM, ODM and customization welcome # High Temperature Resistance: Highest temperature up to 280 with diaphragm sealing; Detailed Technical Info: - - - - High Accuracy Capacitive Differential Pressure Transmitter | Pressure range | -100KPa~70MPa | Rangedown | 100: 01 | Permissible temperature | Compensation Temperature | Media Temperature | Environment Temperature | Storage Temperature | -30~70 | -40~120 | -40~85 | -45~85 | Accuracy | 0.05%FS, 0.075%FS, 0.2%FS | Output | 4~20mA, 4~20mA+HART | Long-term stability | 0.15%URL, 5 years | Power supply | 10.5~55VDC, 24VDC | Ingress protection level | IP66/67 | Mechanical connection | G1/2, M20*1.5, 1/2NPT, 1/4NPT, customization | Temperature drift | 0.03%F.S./10 | Anti-shock | As per test of GB/T1827.3/IEC61298-3, 0.1%URL | Housing material | Aluminum alloy | Weight | About 1.7kg | - - - - Competitive Advantages: 1 - Founded in 2004, over 13 year professional research, developing and production experience; 2 - Experienced and professional R&D team to provide customization services; 3 - Producing transmitter core elements- PCB, supplying PCB for transmitter producers; 4 - Highest accuracy up to 0.05%FS; 5 - Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs; 6 - Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
