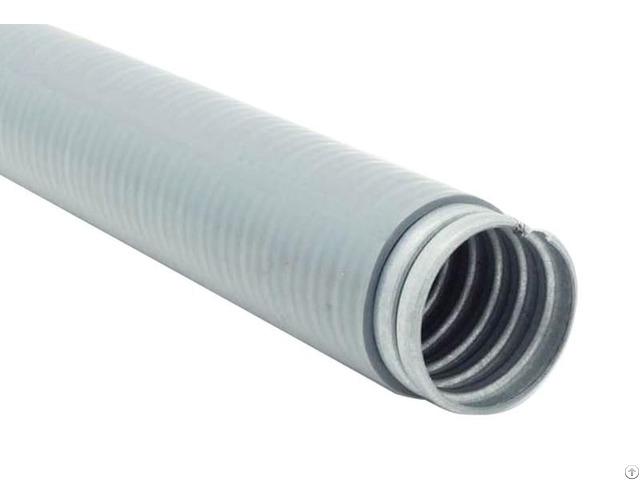

Liquid Tight Flexible Metal Conduit - PLTG13PVC Series(Non-UL)

The full range of product is developed by following the conduit size of UL360 standard with good flexibility for easy wiring.

Applicable for the protection of circuit with 600 volt or lower in locations where no UL certification is required, including commercial buildings, industrial plant, shipyards, marine or boat, computer rooms and etc.

Material：Galvanized Steel + PVC Jacket

Temperature Range: -20℃~+80℃

IP Rating:

IP 40 (Fit with connector series: XS52)

IP 66 (Fit with connector series: XS50, XS51 & XS53)

Jacket Color: Grey (Standard), other colors are available by consult.

Flexibility: High

Fire Retardant: Self-extinguishing

UV Resistance: Yes

RoHS Compliance: Yes

We have many types of Liquid Tight Flexible Metal Conduit-US, like Liquid Tight Flexible Metal Conduit Interlocked, Liquid Tight Flexible Metal Conduit Square-lock, LSZH Liquid Tight Flexible Metal Conduit, Liquid Tight Conduit etc.

Nominal Conduit Size (mm) Nominal Conduit Size (inch) Part Number ID (mm) OD (mm) Bending Radius (mm) Package / Roll (ft/m) Measurement(LxWxH mm)

12 3/8 PLTG23PV C- 3/8 12.29~12.80 17.50~18.00 60.8 100/30.5 440*440*140

16 1/2 PLTG23PVC - 1/2 15.80~16.31 20.80~21.30 92.55 100/30.5 440*440*160

21 3/4 PLTG23PVC - 3/4 20.83~21.34 25.20~26.70 117.95 100/30.5 500*500*180

27 1 PLTG23PVC - 1 26.44~27.08 32.80~33.40 175.1 100/30.5 600*600*300

35 1-1/4 PLTG23PVC - 1-1/4 35.05~35.81 41.40~42.20 213.2 50/15.3 750*750*130

41 1-1/2 PLTG23PVC - 1 - 1/2 40.01~40.64 47.40~48.30 238.6 50/15.3 750*750*250

53 2 PLTG23PVC - 2 51.31~51.94 59.40~60.30 292.6 25/7.6 900*900*120
