Oem Customization Micro Iot Pressure Sensor With I2c 4 20ma Output - China

price: check with company for price

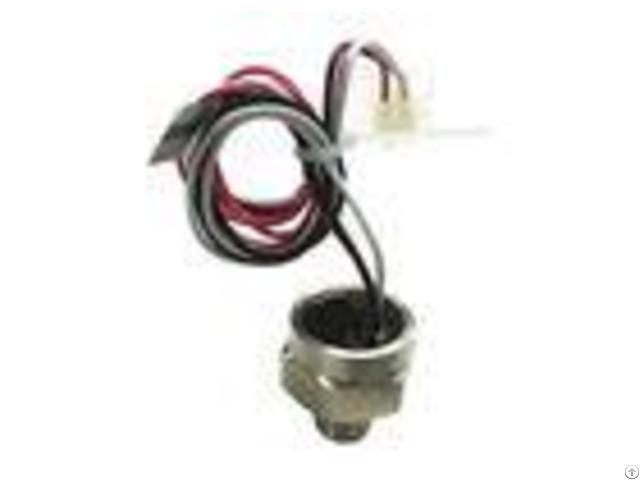

Oem Customization Micro Iot Pressure Sensor With I2c 4 20ma Output

Products Photos Catalog Oem Micro Iot Pressure Photos Catalog

OEM Customization Micro IOT Pressure Sensor with I2C 4~20mA WNK has 13-year experience of research, development, production and sales of sensors.

With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.

After two years of research, development and repeatedly testings, our ceramic capacitive sensors have entered big quantity production stage.

For different applications and installation methods, we offer OEM, ODM and customization services.

Features : # Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ IC outputs available; # High performance ceramic capacitive pressure sensor or diffused silicon pressure sensor; # Temperature range: -20 to 85C; # Wide operation temperature range -40~125C; # Optional packard, M12, Small Hirschman connectors and direct cable outlet; # Small dimensions, dimension customizble; # OEM, ODM, customization service available; Detailed Technical Info: - - - - IOT Mini Pressure Sensor | Pressure range | 0~10bar | Pressure type | Gauge, Absolute, Sealing gauge | Overpressure | 300%F.S. (70kPa) 200%F.S.(25MPa) | Output signals | 0.2-2.9V, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V, 0~10V, 4~20mA | Accuracy | 0.5%FS, 1%FS | Compensation Temp.

| -20~70 | Operation Temp.

| -40~125 | Storage Temp.

| -40~125 | Zero Temp.

Drift | 1.5%FS Max (-20~85) | Full Scale Temp.

Drift | 1.5%FS Max (-20~85) | Pressure Connection | G1/4, 7/16-SAE, NPT, and other outputs | Ingress Protection | IP67 | Housing | SS316, SS304 | - - - - Competitive Advantages: 1 - Founded in 2004, over 13 year professional research, developing and production experience; 2 - Experienced and professional R&D team to provide customization services; 3 - Producing transmitter core elements- PCB, supplying PCB for transmitter producers; 4 - Highest accuracy up to 0.05%FS; 5 - Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs; 6 - Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.


Company Contact:


  • Phone: 86-551-65369569

  • Address: 4/F,B6, No.168, Xiangzhang Road, Hi-tech District, 230088, Hefei, Anhui, China, Hefei , Anhui , China

  • Email: Email


Published date: May 18, 2018

  • Business Description: Founded in 2004, HEFEI WNK SMART TECHNOLOGY CO., LTD is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument.

    We devote to developing, manufacturing and selling of automation control system.
