Oled Electronic Digital Level Switch Pnp 4 20ma Modbus Ip65 Ingress Protection - China

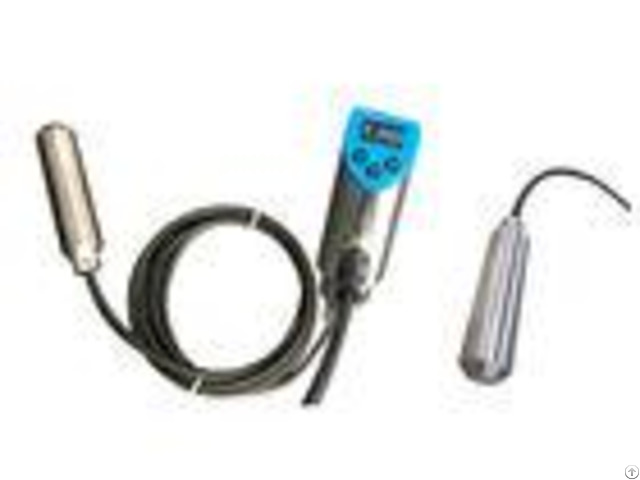

OLED Electronic Digital Level Sensor Switch PNP + 4~20ma + Modbus SLS Intelligent Level Switch is designed for level monitoring and measurement of liquid and oil media.

It is applied to general industry such as tank, case, liquid cell and deep well.

It is level switch, transmitter and display in one device.

In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0.20mA| 420 mA or 0.5V| 010 V) as well as with RS485 Link.

SLS level switch range is 0~100mH2O, with high measuring accuracy of 0.2%FS.

It has normally open or normally closed, switch delay, switch point settable functions and so on.

Thus our SLS is widely applied in various level / height monitoring and control.

Quick Information: # Current output 2PNP + 0mA/4mA20mADC+ MODBUS or voltage output: 2PNP + 0V5VDC/10VDC + MODBUS # PNP switching, voltage and current outputs # Supporting Switching delay # Analog output span settable # Switching points settable # Switching can be set normally open / normally closed # Water, oil or other liquids competible with SS304 &SS316L # OLED high performance display # Display turnable 180 # Media density settable # Housing with electrical connection against process connection rotatable 330 # Support MODBUS protocol Detailed Technical Info: - - - - Measuring range | 01mH2O to 100mH2O | Accuracy | 0.5%FS | Supply Power | 1230V DC | Temp.

Error | 0.02%FS/ | Long-term Stability | 0.3%FS/Year | Analog output accuracy | 0.2%FS | Measuring Media | Water, mineral-based hydraulic fluid and Synthetic oil | Wetted material | Stainless steel, Nitrile Butadiene Rubber and PTFE | Output Configurations | switching+voltage+ communication | 2PNP + 0V5VDC/10VDC + MODBUS | | switching+current+ communication | 2PNP + 0mA/4mA20mADC + MODBUS | Switching current | 1.0A(Max.

) | Switching type | normally open, normally closed (settable) | Switching respond time | 10ms | Switching delay | 0.00s1000.0s | Switching motion mode | delay or windows mode | Analog signal output and maximum ohmic load RL | Current output | 0/420mA, 204/0mA RL0.5k | | Voltage output | 05/10V, 5/100V RL>10k | Screen display | OLED | Menu language | Chinese, English | Switching instruction | 2X Red LED | Displaying pressure units | kPa, mm, cm, m | Buttons | 3X blue back-lighted touch buttons | Displaying supplementary variables | environment temp., analog output value, max.

Peak value, mini.

peak value | Supplementary variables displaying mode | fixed displaying or INFO button switching Display | Working temperature | -3080 | Media temperature | 060 | Storage temperature | -4080 | Electromagnetism compatible | GB/T 17626.2/3/4-2006 | Shock resistance | 10g/10Hz.

500Hz(IEC 60068-2-6-2007) | Vibration resistance | 50g/11ms(IEC 60068-2-27-2008) | Protection Rating | IP65 / IP68 | - - - - Competitive Advantages: 1 - Founded in 2004, over 13 year professional research, developing and production experience; 2 - Experienced and professional R&D team to provide customization services; 3 - Producing transmitter core elements- PCB, supplying PCB for transmitter producers; 4 - Highest accuracy up to 0.05%FS; 5 - Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs; 6 - Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
