Ptfe Corrosive Proof Submersible Level Sensor 4 20ma For Diesel Oil - China

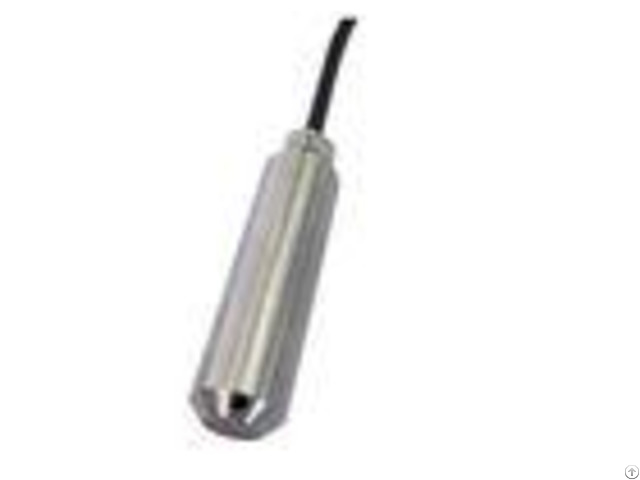

IP68 PTFE Corrosive Proof Submersible Level Sensor 4~20mA For Diesel Oil WNK8010is a submersible water level sensor transducer suitable for liquid level or pressure and depth measurement.

It is made of stainless steelhousing.

Its all stainless steel, suitable for immersion in most industrial liquids and oils.

The welded housing is tested in-house via a helium leak tester to ensure proper protection.

Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage.

Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank.

Quick information: # High accuracy up to 0.2%FS; # Wide application range 0-0.5~200m H2O; # Output 4~20mA, 0~10mA, 0~5V, 1~5V and other outputs; # Stability 0.25%FS/Year; # Corrosive resistance cable of PTFE; # High overload 1.5 times; # Waterproof, protection class IP68; # OEM, ODM and customization; Application: water level, fuel level and other liquid level; well depth; groundwater level; bore well, underground water, river etc, .

Detailed Technical Info: - - - - Submersible Level Sensor | Adopting diffusion silicon oil-filled sensor | Output | 4~20mA, 0-10mA, 0-5V, 1-5V and others | Level range | 0-0.5~200mH2O | Overload | 150% of sensor range | Measuring medium | Liquid | Accuracy | 0.2%FS, 0.5%FS | Stability | 0.25%FS/ year | Housing material | Stainless steel | Cable material | Polyvinyl Fluoride, PTFE | Power Supply | 24VDC | Ambient temperature | -20~85 | Process temperature | -20~85 | Compensation temperature | -20~85 | Protection class | IP68 | - - - - Competitive Advantages: 1 - Founded in 2004, over 13 year professional research, developing and production experience; 2 - Experienced and professional R&D team to provide customization services; 3 - Producing transmitter core elements- PCB, supplying PCB for transmitter producers; 4 - Highest accuracy up to 0.05%FS; 5 - Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs; 6 - Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.

Company Contact:

• Posted By: HEFEI WNK SMART TECHNOLOGY CO., LTD.

• Phone: 86-551-65369569

• Address: 4/F,B6, No.168, Xiangzhang Road, Hi-tech District, 230088, Hefei, Anhui, China, Hefei , Anhui , China

• Email:

• Website: https://www.pressuresensortransmitter.com

• Business Description: Founded in 2004, HEFEI WNK SMART TECHNOLOGY CO., LTD is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument.

  We devote to developing, manufacturing and selling of automation control system.
