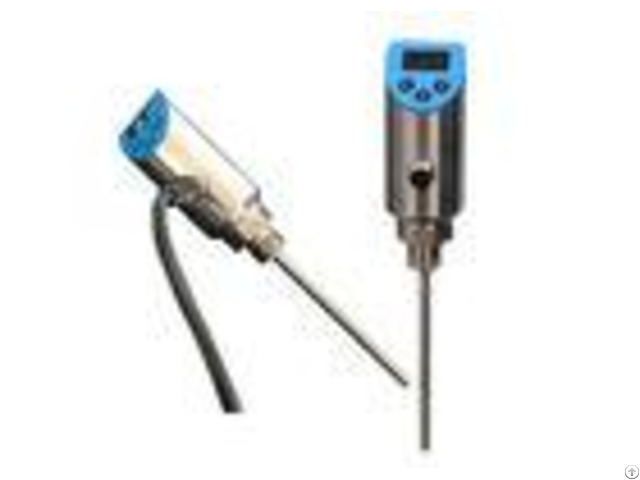

Smart Pt100 Temperature Switch With 4 20ma 2 Pnp Output - China

price: check with company for price

Smart PT100 Temperature Switch with 4~20mA+2 PNP Output The temperature switch STS is robustly designed and very easy to use.

The STS is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc.

It is temperature switch, transmitter and display in one and the same device.

In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0.20mA| 420 mA or 0.5V| 010 V) as well as with RS485 Link.

The temperature switch STS takes the high integrated ARM industrial-grade MCU as the core.

The STS ensures fast-speed and precise temperature measurement and switch movement by carefully adjustment and combining high-precision AD switch and high stabile pressure sensor.

The setup using the three big back-lighted buttons and the display on machine make it very easy for on-site parameters setting.

Quick Information: # Temperature measurement in various occasions # Support MODBUS # PNP switching, voltage and current outputs # Switching points settable # Switching can be set normally open / normally closed # Supporting Switching delay # Various analog output ways available # Displaying temperature peak value and environment temperature # Analog output span settable # OLED self-luminous display # Display reversing 180 # Housing with electrical connection against process connection rotatable 330 # Parameters setting for Password protection Detailed Technical Info: - - - - Measuring range | -50~260 | Accuracy | 0.5 | Supply Power | 1230V DC | Temp.

Error | 0.02%FS/ | Long-term Stability | 0.3%FS/Year | Analog output accuracy | 0.2%FS | Measuring Media | Water, mineral-based hydraulic fluid and Synthetic oil | Wetted material | Stainless steel, Nitrile Butadiene Rubber and PTFE | Output Configurations | switching+voltage+ communication | 2PNP + 0V5VDC/10VDC + MODBUS | switching+current+ communication | 2PNP + 0mA/4mA20mADC + MODBUS | Switching current | 1.0A(Max.

) | Switching type | normally open, normally closed (settable) | Switching respond time | 10ms | Switching delay | 0.00s1000.0s | Switching motion mode | delay or windows mode | Analog signal output and maximum ohmic load RL | Current output | 0/420mA, 204/0mA RL0.5k | Voltage output | 05/10V, 5/100V RL>10k | Screen display | OLED | Menu language | Chinese, English | Switching instruction | 2X Red LED | Displaying pressure units | kPa, mm, cm, m | Buttons | 3X blue back-lighted touch buttons | Displaying supplementary variables | environment temp., analog output value, max.

Peak value, mini.

peak value | Supplementary variables displaying mode | fixed displaying or INFO button switching Display | Working temperature | -3080 | Media temperature | 060 | Storage temperature | -4080 | Electromagnetism compatible | GB/T 17626.2/3/4-2006 | Shock resistance | 10g/10Hz.

500Hz(IEC 60068-2-6-2007) | Vibration resistance | 50g/11ms(IEC 60068-2-27-2008) | Protection Rating | IP65 / IP68 | - - - - Competitive Advantages: 1 - Founded in 2004, over 13 year professional research, developing and production experience; 2 - Experienced and professional R&D team to provide customization services; 3 - Producing transmitter core elements- PCB, supplying PCB for transmitter producers; 4 - Highest accuracy up to 0.05%FS; 5 - Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs; 6 - Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.


Company Contact:


  • Phone: 86-551-65369569

  • Address: 4/F,B6, No.168, Xiangzhang Road, Hi-tech District, 230088, Hefei, Anhui, China, Hefei , Anhui , China

  • Email: Email


Published date: May 18, 2018

  • Business Description: Founded in 2004, HEFEI WNK SMART TECHNOLOGY CO., LTD is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument.

    We devote to developing, manufacturing and selling of automation control system.
