Stainless Steel V Wedge Wire Wrapped Well Screen - China

price: contact company for price

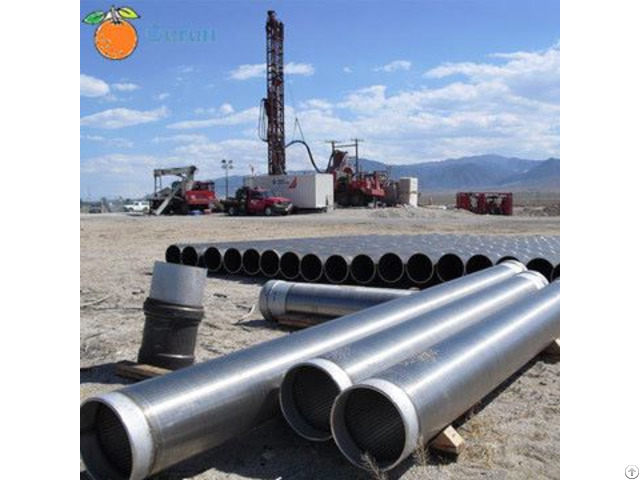

Stainless Steel V Wedge Wire Wrapped Well Screen

Products Photos Catalog Stainless Steel Wedge Photos Catalog

V wedge wire wrapped well screen is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine.

Each profile wire and support rod is welded by resistance welding.

It is used in water well, oil well, gas wells and for environmental well completions.

Material stainless steel 304, 304L, 316, 316L, 321 etc

Characteristics

1) continuous slot screens, stronger and more durable

2) more open area, very precise openings

3) virtually non-clogging and reduce media abrasion

4) easier installation and long-term operating and cost benefits

Technical parameter

1) wire size: 2.2X3.5mm, 2.2X4.5mm, 2) Slot width: 0.5mm, 1.0mm, 3) screen diameter: 177mm, 219mm, 273mm, 323mm

4) screen length: 5.8m, 6m, 11.9m, 12m.

Packing

They are wrapped with moisture-proof paper or other packing materials inside.

The outer package should be wooden pallets or wooden cases.



Application used for oil, gas, water well.


Company Contact:


  • Phone: 0086031180692201

  • Address: CYC, Shijiazhuang, Hebei Province,China , shijiazhuang , hebei , China

  • Email: Email


Published date: July 29, 2016

  • Business Description: Hebei Ourun Wire Mesh Co., LTD was established to produce stainless steel wire mesh, copper wire mesh, brass wire mesh, crimped wire mesh, knitted wire mesh, demister pads, filter discs, conical strainers, wedge wire cylinders, flat wedge wire screen etc.

    We manufacture wire mesh for shielding industry, printing industry, battery industry, solid/liquid/air filtration, mineral processing, coal processing, food processing, water treatment, petrochemical industry, architecture industry etc.



    We have our own wire mesh machines, and have the ability to provide complete mesh products to meet your needs.

    All our products are produced under ISO 9001 .

    For the past 10 years, we have exported products to the U.S.A., Canada, Brazil, Japan, Australia , Saudi Arab

    We are here for your special requirements.

    grace(at)orangewiremesh(d ot)com
