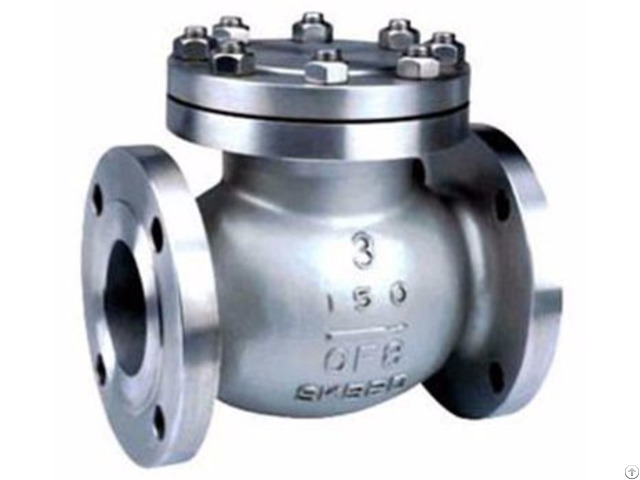

Swing Check Valve - China
price: contact company for price
Bolted cover, swing type disc
Threaded or welded seat ring
Body, Cover, Disc, Hinges, Side way bush: WCB, WC1, WC6, WC9, C5 C12, CF8, CF3, CF8M, CF3M
Hinge Pin: 2Cr13, SS304, SS316, SS304L, SS316L
Sealing face: 13Cr, STL, PTFE, Nylon
Suitable for: 1) For Water, Steam, Petroleum(Body: WCB, WC1, WC6, WC9, C5 C12)
2) For Nitric acid, Acetic acid(Body: CF8, CF3, CF8M, CF3M)
Standards compliance
Design and Manufacture: ANSI B16.34, API6D, BS1868
Face to face(end to end): ANSI B16.10, API6D
Flanged connection: 2"~24" to ANSI B16.5
22", 26"~36 to MSS-SP-44, to API605 on request
Butt welded end: ANSI B16.25
Test and inspection: API598, API6D
Company Contact:
- Posted By: Hebei Shengxin Valve Industry CO.,LTD
- Phone: 86-13832809605
- Address: Changning Road, Tangshan , Hebei , China
- Email:
- Website: http://www.hbsxv.com
Published date: July 5, 2017
- Business Description: We are manufacturer for valves, flanges, pipe fittings.
The valves, flanges and pipe fittings are in cast iron, ductile iron, carbon steel, stainless steel, brass.
Valves: Butterfly valves, Gate valves, Check valves, Ball valves, Globe valves, Triple duty valves, Air valves, Y strainers, Foot valves.
Flanges: Weld neck flanges, Slip-on flanges, Plain flanges, Blind flanges, Threaded flanges.
Pipe fittings: Elbow, Tee, Cross, Reducer, Bushing, Clamp, Expansion joint, nipple.
