Underwater Well Stainless Steel Level Sensor Ip68 4 20ma Anti Corrosive - China

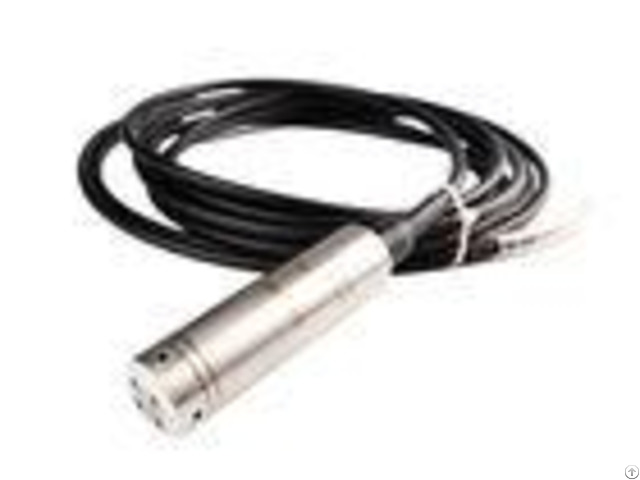

IP68 4~20mA Anti-corrosive Underwater Well Submersible Level Sensor WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement.

Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils.

Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage.

It has high stability up to 0.25%FS/Year with high protection of IP68 - Quick information: 1 - High accuracy 0.2%FS; 2 - Wide application range 0-0.5~200m H2O; 3 - Output 4~20mA, 0~10mA, 0~5V, 1~5V & customization; 4 - High overload 1.5 times; 5 - Stability 0.25%FS/Year; 6 - Protection class IP68; 7 - High cost effective with OEM &ODM Detailed Technical Info: - - - - Submersible Level Sensor | Adopting diffusion silicon oil-filled sensor | Output | 4~20mA, 0-10mA, 0-5V, 1-5V, customization | Level range | 0-0.5~200mH2O | Overload | 150% of sensor range | Measuring medium | Liquid | Accuracy | 0.2%FS, 0.5%FS | Stability | 0.25%FS/ year | Housing material | Stainless steel | Cable material | Polyvinyl Fluoride, PTFE | Power Supply | 24VDC | Ambient temperature | -20~85 | Process temperature | -20~85 | Compensation temperature | -20~85 | Protection class | IP68 | - - - - Competitive Advantages: 1 - Founded in 2004, over 13 year professional research, developing and production experience; 2 - Experienced and professional R&D team to provide customization services; 3 - Producing transmitter core elements- PCB, supplying PCB for transmitter producers; 4 - Highest accuracy up to 0.05%FS; 5 - Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs; 6 - Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
