Cube Beamsplitter Prism - China

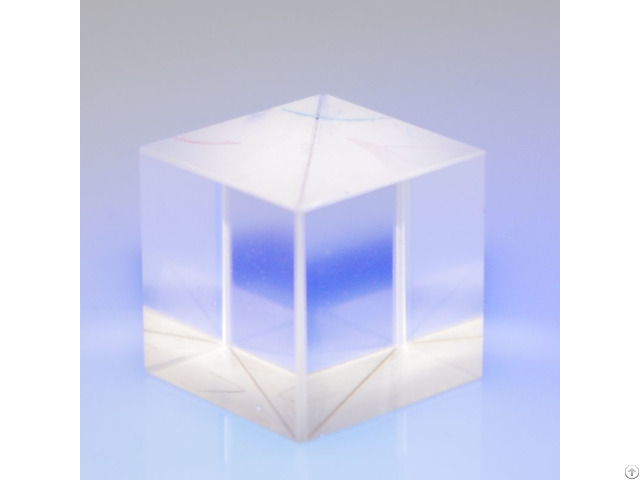

Cube Beamsplitter Prism

Prisms

Optical Components

ZF Glass Cube Beamsplitter Prism, Cube Beamsplitter Prism Wholesaler

PARAMETER: Polarization Cube Beamsplitter

Polarizing cube beamsplitters split randomly polarized beams into two otehogonal, linearly, polarized compoments, S-polarized light is reflected at a 90° while P-polarized light is transmitted.

Each beamsplitter comsists of a pair of percision high tolerance right angle prisms cemented together with a dielectric coating on the hypotenuse of one of prisms.

High Powe Cube Polarization Beamsplitter

High power polarization beamsplitter can be facricated by BRD Optical.

Same as the above, it use precision optical contacted technology which makes it has high laser damage threshold.

High Damage Threshold>500MV/cm2


Transmission >96% @ Central Wavelength

Extinction Ratio>1000: 1 Specification Material Optical glass BK7 / ZF glass

Dinension tolerance ±0.1mm

Flatness λ/4 @ 632.8nm

Surface quality 60/40, 40/20

Angle tolerance <3arc min~ 30 arc sec.

Principal transmittance Tpave > 96%, Ts, 1% (Narrowband) Tpave > 95%, Ts, 1% (Broadband)

Principal reflectance Rs>99%, Rp<5%

Coating Hypotenuse face: Polarization beamsplitter coating;

All input and output face: AR Coating

Products List Type No.

Size(mm)

CBP-5 5×5×5

CBP-10 10×10×10

CBP-12.7 12.7×12.7×12.7

CBP-15 15×15×15

CBP-20 20×20×20

CBP-25.4 25.4×25.4×25.4

Changchun BRD Optical Co., Ltd was founded in 2000, and is located in the city of Changchun-the optic base of China with a beautiful view and profound optical culture.

We have state-of-the-art, modern technology machines for manufacturing and inspecting all kinds of precision optics.

Our company occupies an area of 1, 500 square meters, supported by 82 workers, including three technical engineers and two dedicated optical engineers.

In the aspect of technology, we benefit from the backbone of Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences and Changchun University of Science and Technology.

We also usually make technical exchange with each other.

Referring to the manufacture equipment and checking equipment of products, most of them are adopted from abroad including coating machine, sphericity interferometer, optical spherometer and others.

It can detect the optical components exactly and increase the production levels.

Company Contact:

• Posted By: ChangChun BRD Optical co., Ltd

• Phone: 86 431 81884163

• Address: No.399 Bo Cai Road, High-Tech Industrial Development Area, Changchun, Jilin, China 130012, Changchun , Jilin , China

• Email:

• Website: https://www.ecoptik.net

• Business Description: Changchun BRD Optical Co., Ltd was founded in 2000, and is located in the city of Changchun-the optic base of China with a beautiful view and profound optical culture.

  We have state-of-the-art, modern technology machines for manufacturing and inspecting all kinds of precision optics.

  Our company occupies an area of 1, 500 square meters, supported by 82 workers, including three technical engineers and two dedicated optical engineers.

  In the aspect of technology, we benefit from the backbone of Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences and Changchun University of Science and Technology.

  We also usually make technical exchange with each other.

  Referring to the manufacture equipment and checking equipment of products, most of them are adopted from abroad including coating machine, sphericity interferometer, optical spherometer and others.

  It can detect the optical components exactly and increase the production levels.

  We also comply with a standard of DIN, MIL, ISO surface quality standards in the aspect of production layout and production design.

  For many years, we were focusing on manufacturing and selling precision optics with high quality.

  We mainly deal with optical lenses, prisms, windows, filters, cylindrical lens, aspherical lens, mirrors, quartz glass, ZnSe, CaF2 and others.
