Glan Laser Polarizer Made Of Calcite Bbo Yvo4 - China

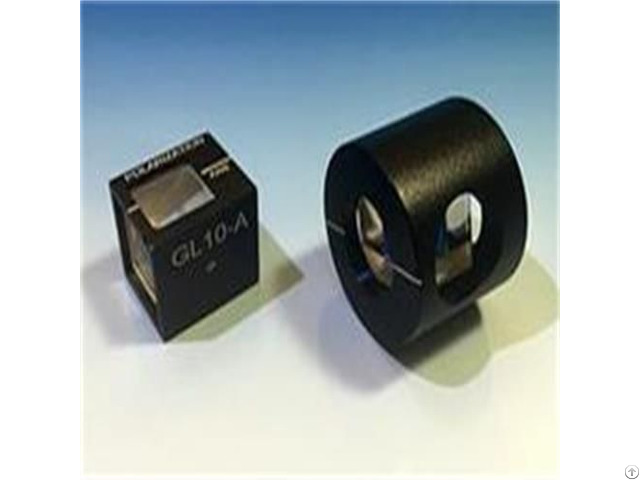

Glan Laser polarizer is made of two same birefringent material prisms that are assembled with an air space.

Photonchina’s polarizer is a modification of the Glan Taylor type and is designed to have less reflection loss at the prism junction.

The polarizer with two escape windows allow the rejected beam to escape out of the polarizer, which makes it more desirable for high energy lasers.

The surface quality of these faces is relatively poor as compared to that of entrance and exit faces.

No scratch dig surface quality specifications are assigned to these faces.

Photonchina Feature： ●Air-spaced

●Close to Brewster's Angle Cutting

●High Polarization Purity

●Short Length

●Wide Wavelength Range

●Suitable for medium power application Specifications： Material: a-BBO, Calcite or YVO 4 Wavelength Range: BBO: 200～3500 nm, Calcite: 350～2300 nm, YVO4: 500～4000 nm Extinction Ratio: Calcite: <5x10-5 ; a-BBO: <5x10-6 ; YVO 4 : <5x10-6 Surface Quality: 20 / 10 Parallelism: <1 arc Min Beam Deviation: < 3 arc minutes Wavefront Distortion: λ /4@633nm Damage Threshold: >500 MW/cm2 Coating: Single MgF2 Mount: Black Anodized Aluminium

Company Contact:

• Posted By: Photonchina Co.,Ltd

• Phone: 13107695427

• Address: 15 Binzhou Road, Jinshan Industrial Park,, Fuzhou , Fujian , China

• Email:

• Website: https://www.photonchinaa.com

• Business Description: Quartz Waveplate

  Photonchina is a leading manufacturer of quartz waveplate products in the world.

  Our complete quartz waveplate range includes true zero order, zero order, multiple order, with the retardation of half, quarter or octadic wave.

  Special types like achromatic and dual wavelength waveplate, either in circular or quadratic shape, are all available.

  Thickness of true zero order waveplate T=0.027mm, is the latest accuracy level reached, thanks to our special production technique and skilled technicians.

  Crystal Polarizer

  Giant company and small start-up have all chosen our polarizer products for their applications in laser, telecommunication,surveyi ng or others.

  Glan laser polarizer, Glan taylor polarizer, Wollaston polarizer, Glan thomson polarizer etc, made of BBO, YVO4, Calcite crystal, are produced by the team with more than ten years of experience.

  High quality crystal materials and excellent optical coating performance have contributed to customer's approval worldwide.

  Photonchina offers polarizer with or without mount.

  Lenses

  You may find various types of lenses from Spherical lenses, Cylindrical lenses to Acylindrical lenses here, produced by materials of BK7, Fused Silica as well as Calcium Fluoride, Sapphire, Silicon and Germanium etc.

  With the rich experience in manufacturing lenses and the help of high-end of optical coating machine, Photonchina has supplied lenses with mass quantity or custom small number to customers worldwide for more than a decade.

  Standard diameters have been 0.5mm-160mm with various radii and types upon customer request.

  Micro lens has now reached 0.5mm diameter, one of the smallest lens ever produced.

  Prisms

  Photonc hina supplies an array of high precision prisms.

  These prism products have been manufactured with stringent inspection for angle, surface quality, flatness, transmitted wavefront, dimension, clear aperture and optical coating performance.

  Our current capabilities include Roof prism,Right angle prism, Penta prism, Rhomboid prism, Dove prism,Wedge prism, Anarmophic prism,Pellin-Broca prism etc.

  Substrates can be chosen from optical glass BK7,N-SF11,Fused silica to crystals like Calcite, BBO, LBO etc.
