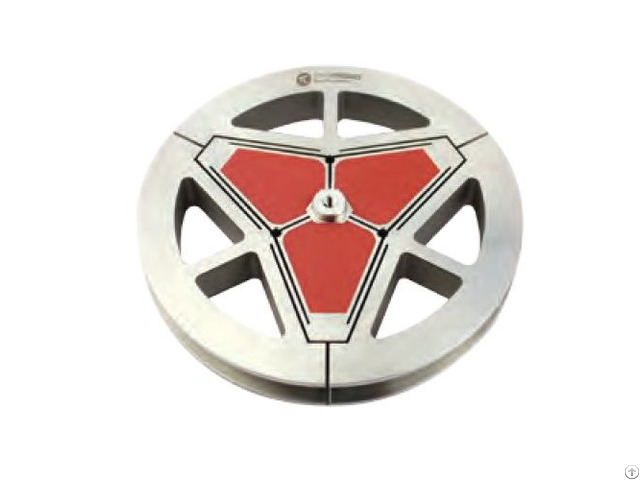

H01 Piezo Expanted Actuators 80um Fiber Stretcher 1 5khz - China
price: contact company for price
H01 piezo fiber stretcher is designed for fiber stretching applications.
Its principle is to cause the hinge structure outward expansion by the action of three piezo stacks placed at 120 degrees thereby stretching the optical fiber wound in the outer diameter groove.
Technical Data
Type: H01.80
Motion: Radial expansion
Travel range(0~120V): Radial: 64µm±20% Fiber/circle: 336µm±20%, Cal.
Travel range(0~150V): Radial: 80µm±20% Fiber/circle: 420µm±20%, Cal.
Resolution: Radial: 4nm Fiber/circle：20 nm, Cal.
Radial max.
blocking force：160N
Unloaded resonant frequency: 740 Hz±20%
Stiffness: 3 N/μm±20%
El.
Capacitance: 5.4μF±20%
Material: Steel
Mass: 220 g±5%
Size: Ø80×14mm You can contact us for other specifications and models.
Company Contact:
- Posted By: CoreMorrow Ltd.
- Phone: 0451-86268790
- Address: 1F, Building I2, No.191 Xuefu Road, Nangang District, Harbin，China, Harbin , China , China
- Email:
- Website: http://www.coremorrow.com/en/
Published date: April 7, 2024
- Business Description: CoreMorrow Ltd. focuses on research，development, production and sales of nanoscale precision positioning products, mainly in the service of high-end precision equipment manufacturers.
After nearly 20 years of rapid development, our market has covered all well-known colleges and universities, research institutes, and high precision equipment manufacturers, and exported to Europe, America, Canada, Singapore, Japan, Korea and other countries.
We have established partnerships with a number of high-tech enterprises, state key laboratory, has become Chinese most professional precision positioning products manufacturer.
