Micro Lens Rod Or Spherical Endoscope - China

price: 1.80 Dollar US$

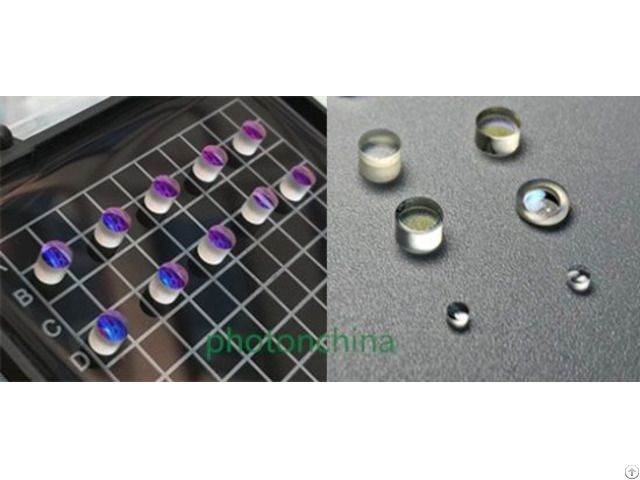

Micro Lens (Ultra small lens) Under the condition of high refractive index, some components can achieve short focal length.

Therefore, the micro lens becomes an ideal choice in the field of high precision applications.

Because of the ultra-small size of this kind of lens (outer diameter 0.5mm-5mm, length: 1mm-20mm), micro lens or ultra-small lens often requires special processing technology, unique production know-how and special optical fixture, etc.

Photonchina provides various sizes of micro lens with an array of applications including active devices, wavelength division multiplexer ( WDM) and fiber lasers (see C-lens, G-lens) in fiber communications, endoscopy for medical and industrial use, capsule endoscope, etc.

Its new application fields are still expanding.

A variety of optical glass or other materials, such as N-SF11, H-LAF76, Fused Silica and so on are available for customer’s design.

H-LaF53, for instance, has often been used in endoscope lens or capsule lens production.

The outer diameter of micro lens covers 0.5mm to 5.0mm with any radius of curvature that can be made.

We have a wide range of lenses in shape: convex, concave, biconvex, meniscus etc.

Photonchina can provide unique rod-shaped glued lens by combining special gluing technics and edging skill.

This rod lens has excellent eccentricity and clear aperture index.

From design, manufacturing to optical coating, from endoscope lens, capsule lens to special-required rod lens, engineers in Photonchina implement strict production process to ensure stable quality, good yield, competitive price as well as responsive lead time.

Through years of accumulated processing know-how technologies and manufacturing capacity, high standard thin film coating performance and strict testing requirements, Photonchina provides customers with one of the world's smallest micro lens series products, which have been widely used in various medical devices (endoscope lens, for example), precision surveying and optical communications instruments.

Being a long term partner of customers worldwide in micro lens or ultra small lens products, Photonchina are proud of achievements made and will keep striving for a higher level of satisfaction of customers.


Company Contact:


  • Phone: 13107695427

  • Address: 15 Binzhou Road, Jinshan Industrial Park,, Fuzhou , Fujian , China

  • Email: Email


Published date: March 16, 2021

  • Business Description: Quartz Waveplate

    Photonchina is a leading manufacturer of quartz waveplate products in the world.

    Our complete quartz waveplate range includes true zero order, zero order, multiple order, with the retardation of half, quarter or octadic wave.

    Special types like achromatic and dual wavelength waveplate, either in circular or quadratic shape, are all available.

    Thickness of true zero order waveplate T=0.027mm, is the latest accuracy level reached, thanks to our special production technique and skilled technicians.

    Crystal Polarizer

    Giant company and small start-up have all chosen our polarizer products for their applications in laser, telecommunication,surveyi ng or others.

    Glan laser polarizer, Glan taylor polarizer, Wollaston polarizer, Glan thomson polarizer etc, made of BBO, YVO4, Calcite crystal, are produced by the team with more than ten years of experience.

    High quality crystal materials and excellent optical coating performance have contributed to customer's approval worldwide.

    Photonchina offers polarizer with or without mount.

    Lenses

    You may find various types of lenses from Spherical lenses, Cylindrical lenses to Acylindrical lenses here, produced by materials of BK7, Fused Silica as well as Calcium Fluoride, Sapphire, Silicon and Germanium etc.

    With the rich experience in manufacturing lenses and the help of high-end of optical coating machine, Photonchina has supplied lenses with mass quantity or custom small number to customers worldwide for more than a decade.

    Standard diameters have been 0.5mm-160mm with various radii and types upon customer request.

    Micro lens has now reached 0.5mm diameter, one of the smallest lens ever produced.

    Prisms

    Photonc hina supplies an array of high precision prisms.

    These prism products have been manufactured with stringent inspection for angle, surface quality, flatness, transmitted wavefront, dimension, clear aperture and optical coating performance.

    Our current capabilities include Roof prism,Right angle prism, Penta prism, Rhomboid prism, Dove prism,Wedge prism, Anarmophic prism,Pellin-Broca prism etc.

    Substrates can be chosen from optical glass BK7,N-SF11,Fused silica to crystals like Calcite, BBO, LBO etc.
