Npbs Cube Non Polarizing Beamsplitter High Power - China

price: 38.00 Dollar US$

Non-polarizing beamsplitter (high power NPBS) is a kind of special polarizing beamsplitter.

It makes the p-polarization component and S- polarization component of incident light have similar spectral characteristics.

The optical coatings have been designed to hold both the s and p-polarization components to the same ratio of reflection-to-transmissio n over a specific laser wavelength region.

This means that they will not change the state of polarization of the incident beam.

All input and output surfaces are coated with a high efficiency anti-reflection coating.

Features of Non-Polarization Beamsplitting Products:

The ratio of horizontal polarization and vertical polarization of incident light should be maintained as much as possible after splitting by the NPBS.

The degree of separation for optical properties of P and S is less than 5%, Dispersion is low and the color neutrality is good.

The wavelength covers 400-1600nm, which is widely used in interferometers and various imaging instruments.

Non-polarization beamsplitter is very useful for randomly polarized light as it is specially designed to minimize the polarization effect.

We can provide both narrow-band and broadband NPBS according to the needs of customers.

ATTRIBUTE STANDARD Material: N-BK7; Fused Silica

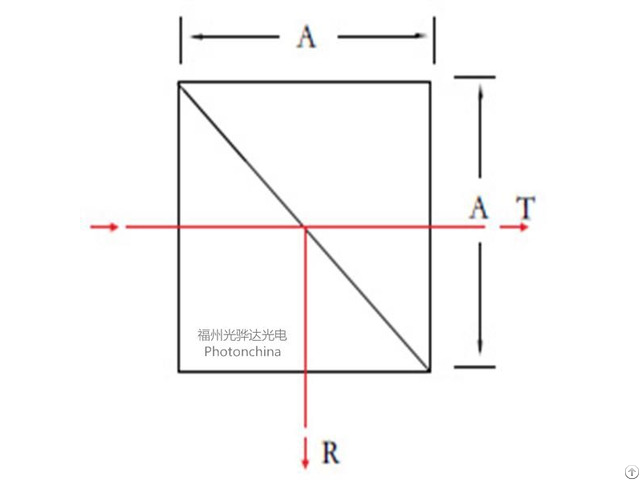

Dimension X×Y: 1×1mm~25.4×25.4mm

Dimension tolerance: ¯0.03mm

Parallelism: <5 seconds

Clear Aperture: 85%

Surface Quality: MIL20-10

Flatness(per 25.4mm): λ/10

T/R: 50/50¯2%

Coating: Narrow band or 400~700; 700~1100; 1100~1600(nm)

Available beam splitting ratio 8/2, 7/3, 6/4, 5/5, 4/6, 3/7, 2/8, 1/9


Company Contact:


  • Phone: 13107695427

  • Address: 15 Binzhou Road, Jinshan Industrial Park,, Fuzhou , Fujian , China

  • Email: Email


Published date: August 10, 2021

  • Business Description: Quartz Waveplate

    Photonchina is a leading manufacturer of quartz waveplate products in the world.

    Our complete quartz waveplate range includes true zero order, zero order, multiple order, with the retardation of half, quarter or octadic wave.

    Special types like achromatic and dual wavelength waveplate, either in circular or quadratic shape, are all available.

    Thickness of true zero order waveplate T=0.027mm, is the latest accuracy level reached, thanks to our special production technique and skilled technicians.

    Crystal Polarizer

    Giant company and small start-up have all chosen our polarizer products for their applications in laser, telecommunication,surveyi ng or others.

    Glan laser polarizer, Glan taylor polarizer, Wollaston polarizer, Glan thomson polarizer etc, made of BBO, YVO4, Calcite crystal, are produced by the team with more than ten years of experience.

    High quality crystal materials and excellent optical coating performance have contributed to customer's approval worldwide.

    Photonchina offers polarizer with or without mount.

    Lenses

    You may find various types of lenses from Spherical lenses, Cylindrical lenses to Acylindrical lenses here, produced by materials of BK7, Fused Silica as well as Calcium Fluoride, Sapphire, Silicon and Germanium etc.

    With the rich experience in manufacturing lenses and the help of high-end of optical coating machine, Photonchina has supplied lenses with mass quantity or custom small number to customers worldwide for more than a decade.

    Standard diameters have been 0.5mm-160mm with various radii and types upon customer request.

    Micro lens has now reached 0.5mm diameter, one of the smallest lens ever produced.

    Prisms

    Photonc hina supplies an array of high precision prisms.

    These prism products have been manufactured with stringent inspection for angle, surface quality, flatness, transmitted wavefront, dimension, clear aperture and optical coating performance.

    Our current capabilities include Roof prism,Right angle prism, Penta prism, Rhomboid prism, Dove prism,Wedge prism, Anarmophic prism,Pellin-Broca prism etc.

    Substrates can be chosen from optical glass BK7,N-SF11,Fused silica to crystals like Calcite, BBO, LBO etc.
