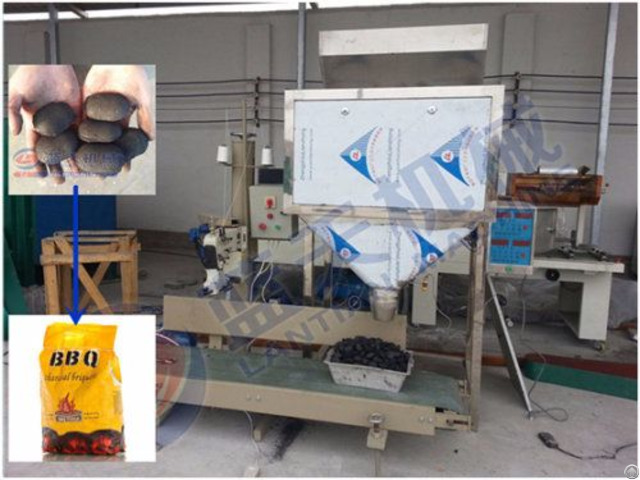

Bbq Charcoal Packing Machine - China

Introduction of BBQ charcoal packing machine Packing machine designed for packing fixed shaped materials into packages, suitable for packing all kinds of regular solid products, such as coal briquettes, charcoal tablets, shisha/hookah briquettes, biscuits, BBQ charcoal briquette, breads, candies etc.

commodities, industrial parts etc.

Features of BBQ charcoal packing machine 1) Dual frequency converter control, bag length is adjustable, no need to adjust idle running distance, adjustment can be make in one step, save time and film 2) Text type human-machine interface, parameter setting is convenient and quick.

3) Problem self diagnose function, any trouble is clear at a glance.

4) Highly sensible photoelectric eye for color mark tracking, which makes sealing and cutting position more accurate.

5) Independent temperature PID control, more suitable for packing films of all kinds of materials.

6) Position fix stop function, free from cutter sticking and film waste.

7) Simple driving system, work is more reliable, and maintenance is more convenient.

8) All controls are carried out with soft ware, its convenient for function adjustment and updated, and it will never drop behind.

Installation of BBQ charcoal packing machine 1) The first step is to determine the installation position, after the machine is set, take the workable as the level reference to adjust four level adjusting screws, set the main machine in a level position.

2) Install the feeding machine, fix it to the left side of the main machine with bolts, then adjust the two level adjusting screws of the feeding machine, for the part connecting with the main machine, the bottom of the feeding chut to the machine machine table should be aligned and kept same level.

3) Install the push finger chain, Loosen the left handwheel of the feeding machine, and install and connect the push finger chain.

Turn the handwheel to adjust the push finger chain to a proper tension.

4) Connect power supply line, This machine uses single-phase 220v, 50hz power supply.

Never connect to 380v or other unqualified power supply.

Special attention must be paid to this requirement! In order to ensure safety, all wiring work should be carried out by qualified professional electricians.

Connecting cable is attached to the machine.

If you use your own power plug, 1.5m m2 three core cable must be used, correctly connect the live wire(L).

the zero wire(N), and the grounded wire (E).
