Bevel Gear Operation Soft Seat Valve Uni Directional Seal Stainless Steel For Sewage - China

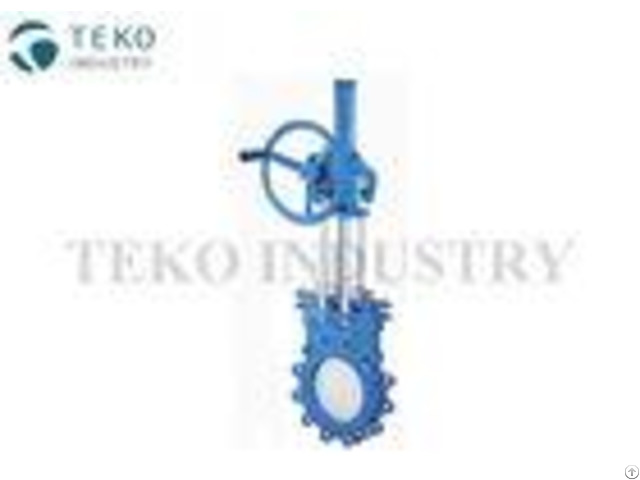

Bevel Gear Operation Uni-directional Seal Soft Seateds Knife Gate Valve For Sewage Introduction The TEKOknife gate is a uni-directional seal wafer valve designed for general industrial service applications.

The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as: # Pulp and Paper # Power plants # Wastewater treatment plants # Chemical plants # Food and Beverage # Bulk handling # Mining # etc.

Featuring a replaceable steel reinforced elastomer seat for enhanced sealing, the TEKO gate valve is easily automated for on/off applications.

# 1 - Designed for easy, quick conversion between manual and pneumatic actuation.

Featuring a lubricant injection port for continuous, smooth operation with minimal maintenance.

* # 2 - Unique design and horizontal bolting stabilizes gate ensuring proper alignment.

# 3 - Standard multi-layer square packing provides exceptional gland sealing.

# 4 - Optional energized quad seal packing for enhanced gland sealing.

# 5 - Anti Extrusion Ring minimizes the gap between the body and the gate # 6 - Unrestricted flow path with minimal pressure drop achieved through full port valve design.

# 7 - Deflection resistant gate design ensures consistent alignment for industry leading durability.

# 8 - Replaceable flexible wire reinforced elastomer seat ensures bidirectional zero leakage shutoff.

Sizes: DN 50 to DN 1200 (larger diameters on request) Max.

Working Pressure - - - - Size | Pressure | DN50-DN250 | 10 kg/cm2 | DN300-DN450 | 7 kg/cm2 | DN500-DN600 | 4 kg/cm2 | DN700-DN900 | 2 kg/cm2 | DN1000-DN1200 | 1 kg/cm2 | - - - - Standard flange connection: EN1092 PN10 and ANSI B16.5 (class 150) Note: other flange connections (on request): EN1092 PN6/16/25 BS D and E ANSI 125
