Cf8m Cf8 Stainless Steel Quick Connect Welded Pipe Fittings - China

SS304 316 Stainless Steel Quick Connect Welded Pipe Fittings 1 - Description Hebei Yuanhegn Stainless Products Co., LTD iscommitted to the design, production and engineering of seamless & welded pipe fittings, and especially full of expertise and experience.

In the design & production of such high temp and high pressure, low temp and high pressue, we have Quick Coupling, Tee, Elbow, Nipple, Cross, Unions, Round Cap, Socket, Eccentric Reducer and so on.

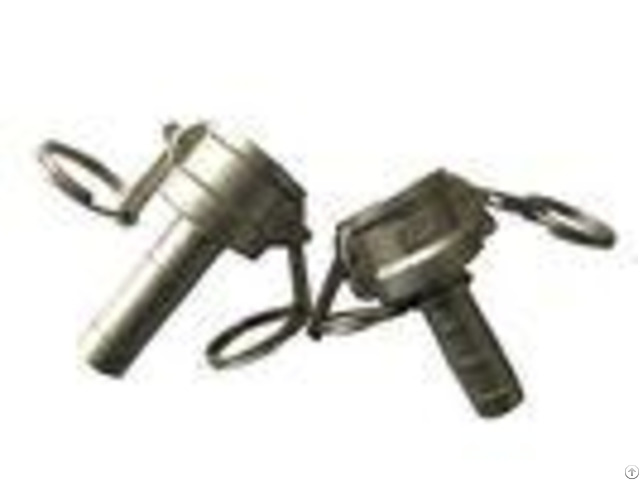

For the quick connect, wehave Type A, Type B, Type C, Type D, Type E, Type F, Dust CAP, Dust DP.

2 - Various of Types Type A - - - - SIZE | L | H | D | d | s | 1/2" | 37 | 30 | 32 | 18.5 | 33 | 3/4" | 4637 | 30 | 32 | 23 | 33 | 1" | 44 | 32 | 36.5 | 26 | 38 | 1-1/4" | 48 | 37 | 45.5 | 31 | 46.5 | 1-1/2" | 52.5 | 40 | 53.3 | 40 | 55 | 2" | 59 | 46 | 63 | 48 | 65 | 2-1/2" | 72.5 | 56 | 75.5 | 60 | 82 | 3" | 67 | 50 | 91.5 | 76 | 97 | 4" | 67 | 50 | 119.5 | 103 | 122 | - - - - Type B - - - - SIZE | D | A | B | C | L | H | 1/2" | 15 | 112 | 53 | 41 | 31 | 46 | 3/4" | 20 | 112 | 53 | 41 | 31 | 47 | 1" | 25 | 120 | 60 | 47 | 37.5 | 55 | 1-1/4" | 32 | 175 | 79 | 56 | 45 | 66 | 1-1/2" | 40 | 182 | 85 | 64 | 45 | 67.5 | 2" | 50 | 191 | 94 | 74 | 51 | 78.5 | 2-1/2" | 65 | 205 | 109 | 88 | 53 | 82.5 | 3" | 76.5 | 230 | 130 | 104 | 55 | 90 | 4" | 102 | 258 | 160 | 13 | 55 | 91 | - - - - TYPE C - - - - SIZE | d | D | A | B | C | L | H | E | 1/2" | 18.5 | 19.7 | 112 | 53 | 41 | 55 | 85 | 15 | 3/4" | 18.5 | 19.7 | 112 | 53 | 41 | 55 | 85 | 15 | 1" | 24 | 26 | 120 | 60 | 46 | 61 | 97.5 | 20 | 1-1/4" | 32 | 34 | 175 | 79 | 56 | 60 | 105 | 28 | 1-1/2" | 38 | 39 | 182 | 85 | 64 | 71 | 116 | 33.5 | 2" | 50 | 52.5 | 191 | 95 | 74 | 73 | 125 | 46.5 | 2-1/2" | 63 | 65 | 205 | 109 | 87 | 82 | 134 | 57 | 3" | 75 | 77 | 230 | 130 | 104 | 91 | 146.5 | 70 | 4" | 100 | 103 | 258 | 160 | 134 | 106 | 162 | 95.5 | - - - - TYPE D - - - - SIZE | D | A | B | C | L | H | 1/2 | 16.5 | 112 | 53 | 41 | 30 | 44 | 3/4 | 19.5 | 112 | 53 | 41 | 30 | 46.5 | 1 | 28 | 120 | 60 | 46 | 35.5 | 52.5 | 1-1/4 | 35 | 175 | 79 | 56 | 43 | 63 | 1-1/2 | 40 | 182 | 85 | 64 | 45 | 65 | 2 | 50 | 191 | 95 | 74 | 51 | 74 | 2-1/2 | 63.5 | 205 | 109 | 87 | 52.5 | 81 | 3 | 75 | 230 | 130 | 104 | 55 | 86 | 4 | 102.5 | 258 | 160 | 134 | 55 | 86 | - - - - TYPE E - - - - SIZE | L | H | D | D1 | d | d1 | 1/2" | 97 | 40 | 32 | 21.5 | 20 | 15 | 3/4" | 97 | 40 | 32 | 21.5 | 20 | 15 | 1" | 101 | 40 | 36.5 | 25 | 27 | 22 | 1-1/4" | 108 | 47 | 45.5 | 30.5 | 34 | 28 | 1-1/2" | 117 | 51 | 53.3 | 38 | 40 | 33 | 2" | 127 | 53 | 63 | 47 | 53 | 46 | 2-1/2" | 137 | 55 | 75.5 | 60 | 64 | 57 | 3" | 150 | 60 | 91.5 | 76 | 77 | 70 | 4" | 162 | 60 | 1195 | 103 | 104 | 96 | - - - - TYPE F - - - - SIZE | L | H | D | D1 | d1 | 1/2" | 48 | 31.5 | 32 | 22.5 | 15 | 3/4" | 48 | 31.5 | 32 | 22.2 | 20 | 1" | 62 | 42 | 36.5 | 26 | 26 | 1-1/4" | 72.5 | 50 | 45.5 | 31 | 34 | 1-1/2" | 73 | 51 | 53.3 | 40 | 40.5 | 2" | 80.3 | 55 | 63 | 48 | 51 | 2-1/2" | 87 | 60 | 75.5 | 60 | 66 | 3" | 95 | 65 | 91.5 | 76 | 79 | 4" | 103 | 69 | 119.5 | 102 | 102 | - - - - 3 - Products Pictures

Company Contact:

• Posted By: Hebei Yuanheng Stainless Products Co.,Ltd

• Phone: 86-311-68021759

• Address: A-12E HIIC No.9 Changjiang Avenue, Shijiazhuang, China, Shijiazhuang , Hebei , China

• Email:

• Website: https://www.stainless-steelballvalve.com

• Business Description: Hebei Yuanheng Stainless products Co., Ltd head office is located in Cangzhou city, which is the production base of foundry in China.

  With a 7000m2 building area and purpose built facility, which includes production (manufacturing, fabrication and assembly), distribution, warehousing and testing.
