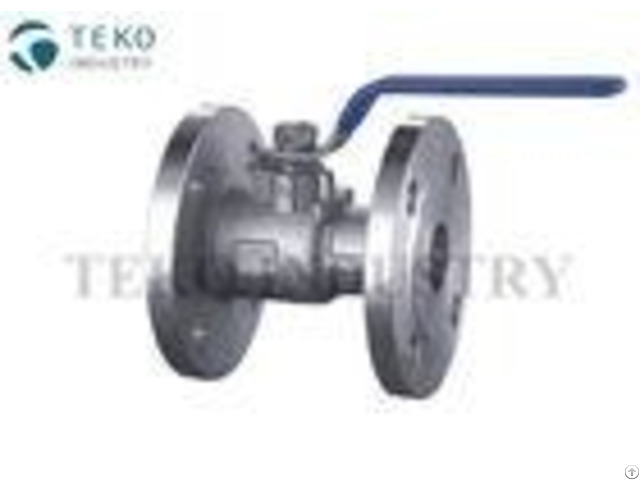

Lever Manual Operation Ss Flanged End Ball Valve One Piece Body With Standard Bore - China
price: check with company for price
Stainless Steel Lever Manual Operation One Piece Body Flanged Ball Valve With Standard Bore About the One pieces ball valve The TEKO one pieces fully flanged reduced bore ball valves I ANSI class 150 an ANSI class300 - We offer tight shutoff, long service life and high durability with exceptional performance in many service applications under the most severe working conditions.
Technical Summary - - - - Size Range: | 1/2"-8" (DN15-DN200) | Flange Connection | ANSI B16.5 | Applications | Chemical, Petrochemical, Oil and Gas production, Refining, Energy, Pulp & Paper and others | Service | Steams, Chemicals, LP-gas, Thermal Fluid, Chlorine, Ammonica, Sour gas | Material | Carbon Steel, Stainless Steel, Hastelloy-C22, Alloy-20, Monel, Duplex | Operation | Hand or Gear operated, Pneumatic, or Electric Actuated | - - - - Construction All vales are one pieces design.
The valve bodies have a top mounting flange conforming to ISO 5211 for direct mounting of actuators, limit switches, fugitive emission bonnets or extended handles.
Seats: Flexible seat design provides tight shutoff at high ad low pressures, reduced wear and valve torque.
A wide range of seat material are available, such Virgin PTFE, glass-fiber PTFE, carbon-filled PTFE, etc.
Other seat material are also available upon customer requests.
Stem Blow-out proof stem with live loaded spring washers to compensate for pressure and temperature surges and wear.
Ball High polished solid ball with a pressure relieve hole in the stem slot to equalize the pressure in the body cavity ensures tight shutoff and long service life.
Fire Safe Valves API 607 design fire safe valves for fire safe applications.
It can be provided upon requests.
Company Contact:
- Posted By: TEKO Industry Co., Limited
- Phone: 86-20-84646289
- Address: Xinqiao Industrial Zone, Shiji County, Shiqiao, Panyu Disctrict, Guangzhou, China, Guangzhou , Guangdong , China
- Email:
Published date: April 25, 2018
- Business Description: TEKO Industry Co., Limited, established in 2010, is a rapidly growing industry products manufacturer in China.
Throughout 8 years of development, we have been now becoming the major valve supply in industries of petroleum, chemical plant, power station, mining, metallurgy, waste water treatment, etc.
