Microfiltration Ceramic Membrane Element - China

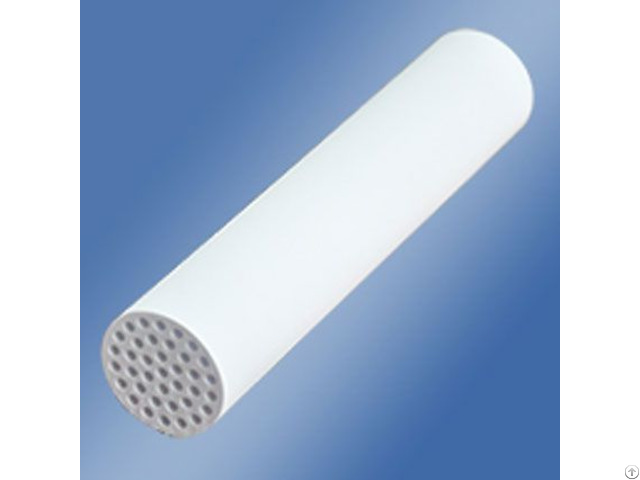

The ceramic microfiltration membrane element ( MF membrane) is made from alumina and zirconia which is an asymmetric membrane structure with multi-channel tubular shape.

The pore is on the channel.

Driven by operation pressure, the liquid is running in the membrane.

The part less than pore size is permeation, the part lager than pore size is concentrated liquid, so as to achieve the separation, concentration and purification purposes.

JIUWU ceramic membrane manufacturer produces the ceramic microfiltration membranes with the pore size 200nm, 500nm, 1200nm and so on.

JIUWU microfiltration system made by high-quality MF membranes element will meet the requirements for your special applications.

OVER VIEW OF MICROFILTRATION CERAMIC MEMBRANE ELEMENT

Ceramic microfiltration membrane is a type of physical filter element where a contaminated fluid is passed through a special pore-sized membrane to separate microorganisms and suspended particles from process liquid.

The most common application of ceramic microfiltration membrane is clarification, or removal of suspended solids to produce a clear liquid.

It is commonly used in conjunction with various other separation processes such as ultrafiltration and reverse osmosis membrane technology to provide a product stream which is free of undesired contaminants.

Examples include clarification of whole cell broths; purification processes in which macromolecules must be separated from other large molecules, enzymes or cell debris; clarification of dextrose and highly colored fruit juices, wine and beer, during which fruit juice membrane and beer membrane filtration will be used; whey de-fatting and casein removal.

Ceramic microfiltration membrane systems operate at relatively low pressures and come in a variety of configurations.

They are characterized by pore size, ranging from 0.05 micron to 1 micron.

JIUWU company offers a large choice of ceramic microfiltration membranes with different geometries and cut-offs to meet your process requirements in viscosity, molecule size, impurity profile, purity and yield target, etc.

as well as cleaning and sanitization procedures.

MF ceramic membrane usually serves as a pre-treatment for other separation processes such as ultrafiltration, and a post-treatment for granular media filtration.

Learn more micro filtration technology here! APPLICATION OF MICROFILTRATION CERAMIC MEMBRANE ELEMENT

Remove suspended solid and reduce SS

Remove proteins, polysaccharides, pigments and other impurities

Remove bacterial

Dehydration

Concentration

Reduce COD/BOD

Membrane technology in food processing

Membrane filtration of milk

Ceramic membranes for wastewater treatment

Company Contact:

• Posted By: Jiangsu Jiuwu Hi-tech Co., LTD

• Phone: 02558109595

• Address: No. 9 Yuansi Road, Pukou, Nanjing, Jiangsu, China 211808, Nanjing , jiangsu , China

• Email:

• Website: https://www.jiuwumembrane.com/

• Business Description: JIANGSU JIUWU HI-TECH CO., LTD has become the biggest ceramic membrane producer and system integration provider in the world since 1997.

  JIUWU HI-TECH has advance R&D center, many material scientists, experienced engineers and workers and more than one hundred of pilot.

  JIUWU HI-TECH provides total solution from trial, design , manufacturing, installation, commissioning, after-sale service to membrane replacement.

  JIUWU HI-TECH cooperates with OEM.

  JIUWU ceramic membrane element has an asymmetrical structure consisting of three layers, which are filtering layer, an intermediate layer, and the support layer.

  The pressure drop of such asymmetrical structure is lower than that of the symmetrical structure of another membrane, which means that the ceramic membrane element has a better recovery.

  JIUWU ceramic membrane element adopts dynamic cross-flow filtration mode which is completely different from dead-end filtration and filter-cake filtration.

  The feed flows into the membrane channel at a cross flow velocity.

  Under a certain pressure (Trans-Membrane Pressure), small molecular substances or clean liquids pass through the membrane layer vertically to permeation, macro molecular substances or solids are trapped by the membrane, thereby achieving the purpose of clarification, concentration and purification.

  Cross-flow filtration mode can achieve stable fluxes.

  JIUWU ceramic membrane element is an ideal choice for high value-added products and demanding selective separations from solid-liquid fluid streams.

  The compact multi-channel geometry and high permeability are optimized for bulk processing applications.

  JIUWU ceramic membrane element has a wide range of application-specific of geometries with pore size from 2nm to 1200nm, making it ideal for micro filtration ultra filtration, nanofiltration.

  JIUWU ceramic membrane element is available in sizes ranging from small laboratory devices through individual modules of 0.1 square meters surface area, ensuring the ability to evaluate and scale up processes to any size.
