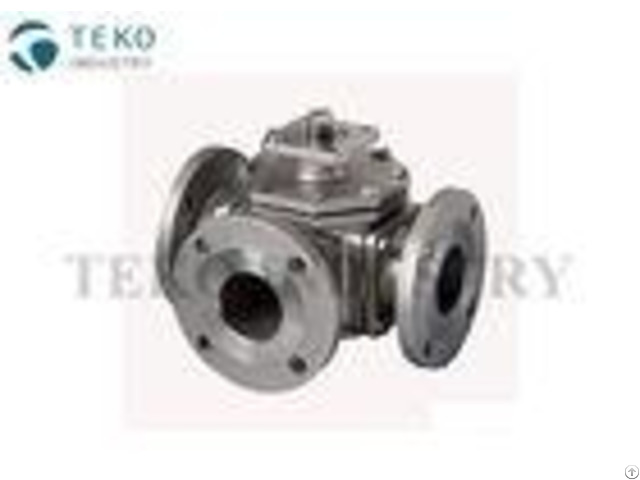

Multi Way Ss Ball Valve Flange Type 1 2 Inch To 8 Inch L Port Rb For Isolation Process - China
price: check with company for price
Multi Way Flanged Ball Valve L Port RB Stainless Steel Material For Isolation Process Descriptions The three way ball valve is configured with Shut-off.
The three ports are configured as on at bottom and one each on the right and left of the valves.
With this, three way shut-off ball valve, the two different Medias can flow separately from either of the two sides of the valve to the bottom side of the valve and can be stopped.
Alternately the three-way shut-off ball valve is features for diverting single media from the bottom port of the valve is either side, with shutting off of the media.
With a single three way ball valve shut-off is also achieved.
Material Configuration - - - - Mounting Interface | ISO 5211 | Material of Body | WCB, CF8, CF8M, CF3, CF3M, (special on request) | Trim | CF8, CF8M, CF3, CF3M (special on request) | Seat | PTFE RPTFE | Size | 1/2" to 8" | Pressure rating | ASME 150Lb/300Lb | Construction | Reduced Bore | - - - - What is the difference between T port and L port ball valve? 1 - L-Port valves have a ball that joins two adjacent ports.
Traditionally, they are used to direct flow between the centre and one of two side ports.
Sample Application: Directing an irrigation pump to one of two sprinkler heads.
2 - T-Port valves can also direct flow between the centre and one of two side ports.
The difference is that they have a third handle position that connects the centre to both side ports at the same time.
Sample Application: Allowing a pump to take rainwater from two tanks, with the option of isolating a tank if it became contaminated.
(Best practice: install a check valve between the T-Port and each tank to minimize cross-contamination, allow at least 6 x pipe diameter between the intake of the pump and the T-Port to reduce cavitation caused by turbulence)
Company Contact:
- Posted By: TEKO Industry Co., Limited
- Phone: 86-20-84646289
- Address: Xinqiao Industrial Zone, Shiji County, Shiqiao, Panyu Disctrict, Guangzhou, China, Guangzhou , Guangdong , China
- Email:
Published date: April 25, 2018
- Business Description: TEKO Industry Co., Limited, established in 2010, is a rapidly growing industry products manufacturer in China.
Throughout 8 years of development, we have been now becoming the major valve supply in industries of petroleum, chemical plant, power station, mining, metallurgy, waste water treatment, etc.
