Radio Frequency Probe Pogo Pin Rpm700 Series For Electronic Test - Hong Kong

Radio Frequency Probe Pogo Pin RPM700 Series for Electronic Test Radio frequency coaxial probes are a type of measurement device used for electronic test equipment to measure radio frequency signals of electronic circuits in silicon wafers, die and open microchips.

In addition, RF coaxial probes are used in narrow pitch or high density RF interconnect applications in connector assemblies.

Transmission lines used in RF applications are usually coaxial cables connected to circuit boards and microstrip lines inside circuit boards.

Features:

Low impedance

High bandwidth

Repeatable measurements

Coaxial design

Interchangeable inner pin Advantages

Low cost

Best yield

Repeatable accurate test

Long lifespan Application

Broadband RF measurements

PCBA test

SMA connectors

RF switches

etc.

There is a fixed schedule for mass production of radio frequency test probe RPM700 we will introduce here.

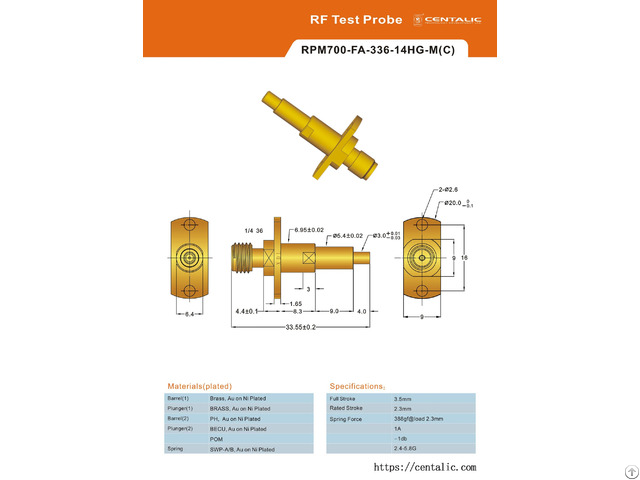

This probe is 33.55 mm in total length.

This probe can withstand the current up to 1 Amp.

The materials used for the construction of this radio frequency test probe are different for each component:

The barrels are made of brass and phosphor bronze respectively.

Subsequently gold and nickel are plated during the galvanic plating phase.

The spring is made of gold-plated music wire.

One plunger is made of brass, then gold and nickel plated.

The other plunger is made of POM and beryllium copper plated with gold and nickel.

For details, please check parameters in below table.

Materials (plated)

Barrel (1): Brass, Au on Ni Plated

Plunger (1): Brass, Au on Ni Plated

Barrel (2) : Phosphor Bronze, Au on Ni Plated

Plunger (2): Beryllium Copper, Au on Ni Plated

POM

Spring: SWP-A/B, Au on Ni Plated Specifications

Full Stroke: 3.5 mm

Rated Stroke: 2.3 mm

Spring Force: 388 gf at load 2.3 mm For more information, please check below catalog.

Company Information:

Centalic Technology Development Ltd. was founded in 1980 - Specializing in R&D, manufacture, sales and technical service, Centalic is one of the earliest high-tech enterprises which concentrates on large-scale production of various test probes and precision metal parts, and has a professional manufacturing base owning complete production lines and test equipment.

Our products include semiconductor test probes, in-circuit test probes, radio frequency probes, harness probes, battery contact probes, switching probes, big-current probes, spring probes, universal complex test probes, wafer probes, and so on.

They are widely applied to the tests of various electronic products, such as in-circuit tests of semiconductor components, chips, PCB and other electronic peripherals.

Our company owns professional R&D, production, sales teams under the working principle of 'quality, punctuality, confidentiality' to totally efficiently develop test probes in accordance with the requirements of customers' test projects and meet the needs of customers for mass production as well as developing markets.

With many years' continuous endeavour of our staff, Centalic has built a solid foundation in this industry and our products have been sold all over the world.

Welcome to browse our website and download any catalogs of our products.

If you need a complete set of product manual, please feel free to contact us.

Many products are not uploaded due to a huge range.

If you can't find what you need, please feel free to contact us.
