S25 Boring Milling Spindle Head - Taiwan

price: contact company for price

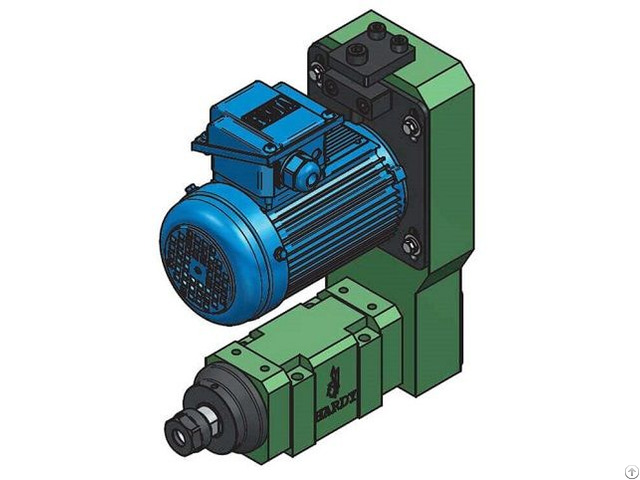

S25 Boring Milling Spindle Head

Products Photos Catalog S25 Boring Milling Photos Catalog

S25 spindle housing itself is an FC30 casting, which further underwent precision boring and honing, and the material for spindle are alloy steels subjected to high frequency heat treatment.

They are assembled with SKF Germany, NSK Japan and Taiwan TPI precision bearings which maintaining the spindle nose accuracy 0.002mm or less.

Its maximum capacity RPM 12000 is suitable to mount on a CNC servo slide or hydraulic feed table for your machining applications.

Feature:

1 - Standard 3-phase AC motor 0.18kW is included, optional maximum power up to 0.37kW

2 - Belt driven at fixed speed and incorporate a timing or Poly-V belt

3 - Spindle taper ER20 is available

4 - Available for servo driven at variable speeds

5 - AC Induction Motor protection IP 54

6 - Gearbox motor is available upon request


Company Contact:


  • Phone: 886-4-24860602

  • Address: No. 22 LiouShun RD. , Taichung , Taiwan , Taiwan

  • Email: Email


Published date: November 8, 2020

  • Business Description: HANN KUEN is an expert in developing & manufacturing special purpose machine units, such as drilling head, tapping head, boring and milling head, servo driven facing head, built-in motor spindle unit, spindle with auto unclamping cylinder, servo and hydraulic slide tables.
