S60 Fa408 Servo Facing Spindle Head Unit - Taiwan

price: contact company for price

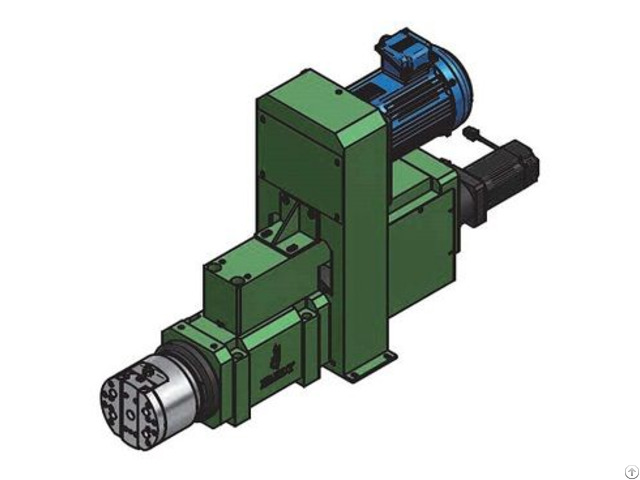

S60 Fa408 Servo Facing Spindle Head Unit

Products Photos Catalog S60 Fa408 Servo Facing Photos Catalog

S60-FA408 facing head slider transmission is designed with linear rails and a ball screw grade C5 which are incorporated with a servo motor.

The roundness of spindle nose is within 0.002mm and repeatability of facing head slider is within 0.01mm.

This unit is capable for processing like inner (ID) and outer (OD) turning, grooving, conical boring, conical threading, concave/convex rounding and other spherical machining.

Feature:

1 - Facing slide stroke 8mm

2 - Facing slider repeatability within 0.005mm

3 - Standard 3-phase AC motor 2.2kW is included, optional maximum power up to 3.7kW

4 - Belt driven at fixed speed and incorporate a timing belt

5 - Available for servo driven at variable speeds

6 - AC Induction Motor protection IP 54


Company Contact:


  • Phone: 886-4-24860602

  • Address: No. 22 LiouShun RD. , Taichung , Taiwan , Taiwan

  • Email: Email


Published date: November 8, 2020

  • Business Description: HANN KUEN is an expert in developing & manufacturing special purpose machine units, such as drilling head, tapping head, boring and milling head, servo driven facing head, built-in motor spindle unit, spindle with auto unclamping cylinder, servo and hydraulic slide tables.
