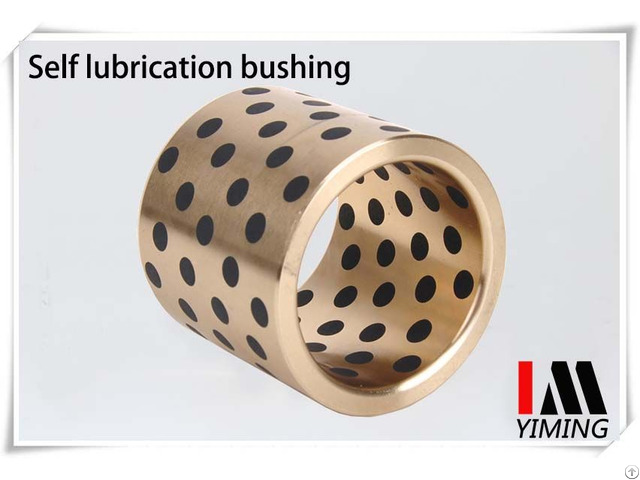

Self Lubricating Bearing Jdb Copper Oil Free Bushing - China

Introduction:

Available copper alloy base:

Item International Standard

GB1176 US Standard

ASTM/UNS DE Standard

DIN JP Standard

Jis

High strength brass CuZn25Al6Fe3Mn3 C86300 G-CuZn25Al5 HbsC4

Aluminum bronze CuAl10Fe3 C95200 G-CuAl10Ni Aluminum nickel bronze CuAl9Fe4Ni4Mn2 C95500 G-CuAl9Ni AIBC3

Tin bronze CuSn11P C90710 PBC2

Tin bronze CuSn6Zn6Pb3 C83600 G-CuSn5Zn5Pb5 BC6

Tin bronze CuSn8Pb2 C92710 G-CuSn7ZnPb LBCLn2

High lead tin bronze CuSn10Pb10 C93700 G-CuPb10SN LBC3 Available solid lubricants:

Item Name Main Component

SL1 Graphite High purity graphite

SL2 PTFE PTFE + MoS2 + Glass fiber Size and shape:

Possible minimum inner diameter 6mm, maximum outer diameter 1500mm.

Possible shape include bush, flange bush, half bush, ball, gasket, slide plate, L and V special shape etc.

Working principle：

The product is based on high quality copper alloy, inlaid the solid lubricant according to a certain angle and proportion(normally 15-30% of surface area, do not affect the working strength but realize the lubrication function), and machining by precision machine.

When the bearing is working, the linear expansion coefficient of metal and solid lubricants is obviously different due to the friction heat.

Lubricants will form solid lubrication film on the working surface to achieve the effect of self lubrication and maintenance free.

Selection conditions:

1 - low speed and heavy loading, oil lubricating film can not maintain.

2 - High or low temperature working, or ambient temperature change a lot.

3 - Working in corrosive medium such as sea water or other chemical liquids.

4 - The impact load is easy to appear in the work.

5 - Need to start frequently or start at high load.

6 - Long maintenance period or high maintenance cost, which requires long working life.

7 - It is difficult for lubricating oil to be supplied because of the working environment or mechanical structure.

Main application areas:

The product is mainly used in hydroelectric generating units, reservoir operation doors, accident doors, petroleum machinery, metallurgical equipment, mining machinery, aviation industry, plastic machinery, automobile production line and other fields.

Packing and delivery:

Packing with bubble bag in wooden carton on the pallet, delivery by air or sea.
