Tobee® 250tv Sp Vertical Slurry Pump - China

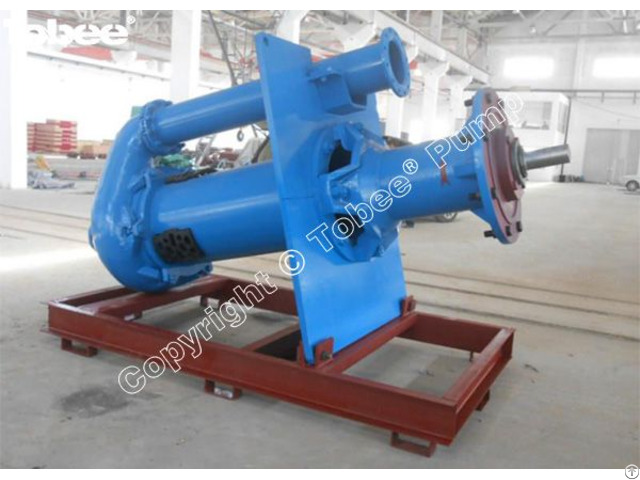

Tobee® 250TV-SP Vertical Slurry Pump is no submerged bearings or seals heavy duty cantilevered pumps, which ideal for a variety of submerged suction pumping applications.

These pumps operate well in a variety of sump conditions, and can also be readily applied on floating dewatering or other floating pump platforms.

Design Features: • Bearing Assembly - The bearings, shaft and housing are generously proportioned to avoid problems associated with the operation of cantilevered shafts in the first critical speed zones.

The assembly is grease lubricated and sealed by labyrinths; the upper is grease purged and the lower protected by a special flinger.

The upper or drive end bearing is a parallel roller type whilst the lower bearing is a double taper roller with preset end float.

This high performance bearing arrangement and robust shaft eliminates the need for a lower submerged bearing.

• Column Assembly - Completely fabricated from mild steel.

The SPR model is elastomer covered.

• Casing - Has a simple bolt-on attachment to the base of the column.

It is manufactured from a wear resistant alloy for the SP and from moulded elastomer for the SPR.

Company Contact:

• Posted By: HEBEI TOBEE PUMP CO., LIMITED

• Phone: 15633815619

• Address: No. 266, Tianshan St, High-tech Zone, Shijiazhuang City 050000, Hebei , China

• Email:

• Website: https://tobeepump.com/

• Business Description: Hebei Tobee Pump Co.,Limited is a professional manufacturer in designing and manufacturing Centrifugal Slurry Pumps, Pipes & Fittings, Valves etc.

  Our factory is located in the High tech Development Zone, Shijiazhuang City, China.

  We specialized in Horizontal slurry pumps, Vertical slurry pumps, Gravel sand pumps, Dredging pumps, Paper pulp pumps, Molten Salt Pumps, End suction pumps, Double suction pumps, Multistage pumps, Boiler feed water pumps, Self priming pumps, Inline centrifugal pumps, Sea water pumps, Chemical pumps, Irrigation pumps, Fire pumps, API 610 centrifugal oil pumps, Submersible sewage pumps, Slurry Pump spare parts, Pipes & fittings and Valves in domestic and over 80 countries in the world.

  Capacity

  Tobee® Pump has a wealth of experience in the manufacturing and service of pumps and accessories; in fact Tobee® Pump has machinery manufacturing experience of over 45 years having achieved great success with R&D and manufacturing of Pumps for more than 30 years.

  The annual production capacity of pumps in our factory surpasses 10,000 easily.

  Tobee® Pump has a tremendous market share that covers more than 120 cities in China including many provinces and autonomous regions and more than 80 countries.

  Production Capability

  Tobee® Pump has over 80 sophisticated equipment such as CNC, Director reading Spectrometer, CMM (Coordinate Measuring Machine), Rapid typing Machine and etc.

  Based on these facilities, Tobee® Pump has the abilities of material inspection, casting, welding, machining, assembling and the performance test of pump unit.

  The maximum weight of the casting by Tobee® Pump is about 12 tons, the maximum diameter of the casting can be machined by Tobee® pump is over 5 meters and the maximum flow rate of Tobee's Pump product is more than 80,000 cubic meters per hour.

  With an annual production of 1000~120,000 pumps, Presently, Tobee® Pump is the top 10 pump manufacturer with high comprehensive capacity of design and producing.
