Wafer Short Pattern Ss Ball Valve Flange Type Wcb Material With Space Saving Structure - China

price: check with company for price

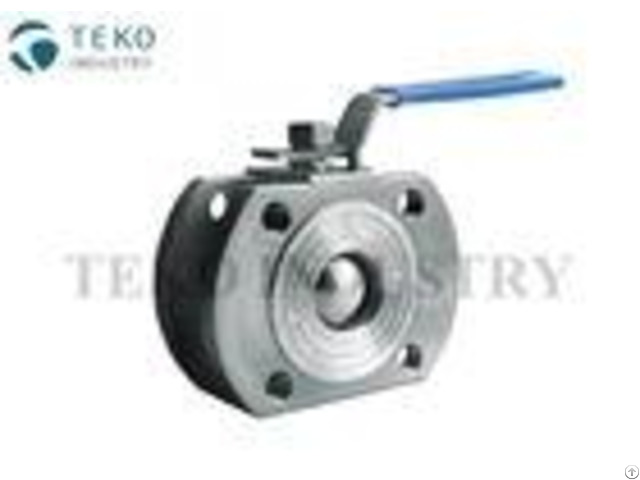

Wafer Short Pattern Ss Ball Valve Flange Type Wcb Material With Space Saving Structure

Products Photos Catalog Wafer Short Pattern Photos Catalog

Wafer Short Pattern Stainless Steel Wafer Ball Valves With Space Saving Structure # Stainless steel ASTM A351 # CF8M, flanged ANSI 150 ball valve.

# Full port, sizes 1/2'' to 8''.

# Temperature to180 degree.

# Blow out proof stem, adjustable stem packing.

# PTFE seats, packing and thrust washer.

# Space saving design.

- 100% tested.

Material List - - - - No.

| PART NAME | MATERIAL | 1 | BODY | AISI 316 - CF8M | 2 | END CONNECTION | AISI 316 | 3 | BALL | AISI 316 | 4 | BALL SEATS | P.T.F.

E + 15% GLASS | 5 | RING | FKM (Viton) | 6 | THRUST WASHER | P.T.F.

E | 7 | RING | FKM (Viton) | 8 | STEM SEAL | P.T.F.

E | 9 | PACKING GLAND | STEEL | 10 | END STOP | AISI 430 (DN 10 - DN 50) STEEL (DN 65 - DN 200) | 11 | SPRING WASHER | STEEL | 12 | NUT | STEEL | 13 | STEM | AISI 316 | 14 | HANDLE | STEEL | 15 | HANDLE DN 150-200 | STEEL | 16 | SCREW | STEEL | 17 | SCREW | STEEL | 18 | BODY HANDLE DN150-200 | CAST IRON | - - - - Dimensions - - - - DN | d | L | D | K | D1 | C | H | N- | W | 15 | 15 | 35 | 95 | 65 | 46 | 10 | 65 | 4-M12 | 100 | 20 | 20 | 37 | 105 | 75 | 56 | 11 | 70 | 4-M12 | 110 | 25 | 25 | 42 | 115 | 85 | 65 | 12 | 80 | 4-M12 | 125 | 32 | 32 | 53 | 135 | 100 | 76 | 14 | 90 | 4-M16 | 150 | 40 | 38 | 62 | 145 | 110 | 85 | 16 | 96 | 4-M16 | 160 | 50 | 50 | 78 | 160 | 125 | 100 | 17 | 104 | 4-M16 | 180 | 65 | 58 | 90 | 180 | 145 | 118 | 18 | 110 | 4-M16 | 200 | 80 | 76 | 110 | 195 | 160 | 132 | 18 | 130 | 8-M16 | 250 | 100 | 90 | 134 | 215 | 180 | 156 | 19 | 145 | 8-M16 | 270 | 125 | 100 | 197 | 245 | 210 | 185 | 22 | 180 | 8-M18 | 320 | 150 | 125 | 231 | 480 | 240 | 207 | 24 | 200 | 8-M23 | 320 | - - - -


Company Contact:


  • Phone: 86-20-84646289

  • Address: Xinqiao Industrial Zone, Shiji County, Shiqiao, Panyu Disctrict, Guangzhou, China, Guangzhou , Guangdong , China

  • Email: Email


Published date: April 25, 2018

  • Business Description: TEKO Industry Co., Limited, established in 2010, is a rapidly growing industry products manufacturer in China.

    Throughout 8 years of development, we have been now becoming the major valve supply in industries of petroleum, chemical plant, power station, mining, metallurgy, waste water treatment, etc.
