Cnc Vertical Borer Machine - China

price: 60000.00 Dollar US$

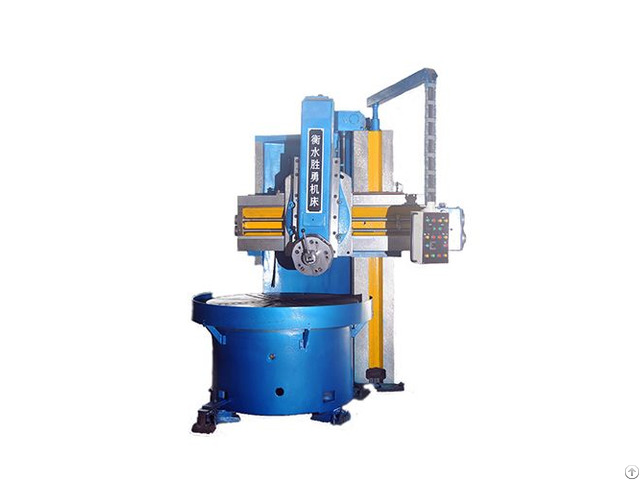

Cnc Vertical Borer Machine

Products Photos Catalog Cnc Vertical Borer Photos Catalog

Technical specification of Single column CNC Vertical Borer machine CK5116

1 Table diameter 1400 mm

2 Maximum turning diameter 1600 mm

3 Maximum height of workpiece 1000 mm

4 Maximum weight of workpiece 5 t

5 Speed change of table 5-160 r/min

6 Rotation speed of work table 16

7 Feed rates 0-1000 mm/min

8 Step stepless

9 Horizontal travel of tool post 915 mm

Vertical travel of tool post 800 mm

10 Horizontal travel of side cutter bar 630 mm

Vertical travel of side cutter bar 900 mm

11 Crossrail travel 650 mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 22 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight 12.5 t

17 Overall dimensions(L×W×H) 2800×2800×3800 mm


Company Contact:


  • Phone: +86-317-5202090

  • Address: No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County, Hengshui City,Hebei Province,China, Hengshui City, Hebei Province, China

  • Email: Email


Published date: July 21, 2016

  • Business Description: Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the manufactures and sells of metalworking machines: CNC lathe machine, vertical lathe machine , Heavy duty horizontal lathe machine, Gantry milling machine, Gantry Planer Milling Machine, Roll turning lathe, Floor type boring lathe etc.

    If interested, please feel free to contact us.
