Blue Colour Otr Retreading Equipment 200kg Tire Curing Rim Fixing Machine - China

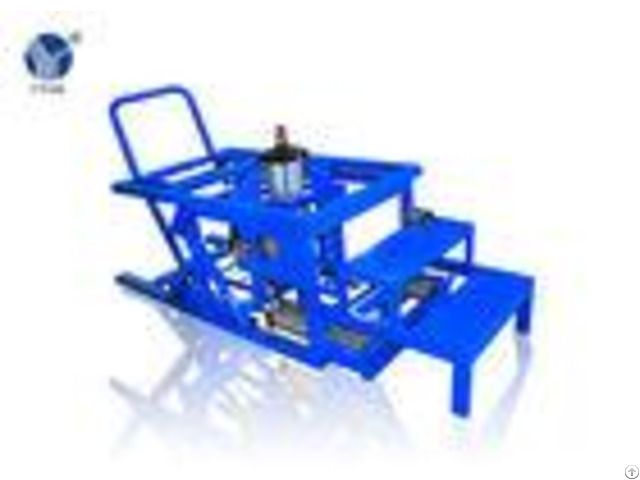

OTR Tire Curing Rim Fixing Machine For OTR Retreading Equipment Standard function description: 1, This machine make the inner envelope paste to inner side of tire, put together with outer envelope, can convenient and fast turning the tire and wont damage the envelope.

2, Simple construction, reasonable design, high work efficiency.

3, After finish install the inner envelope, it can put the tire under the circulation monorail, convenient and fast proceed next step.

Our equipment which has advantages of stable and reliable performance is the most widely used steam vulcanizing boiler, the temperature, pressure and time can be controlled automatically and it also easy to operate.

And the equipment can save 35% of energy than other traditional equipment.

Working principle for steam vulcanizing autoclave The steam enter into the steam diffusion tube by entrance of steam which at the bottom of the steam vulcanizing boiler and the entrance can be controlled by automatic valve.

The steam diffusion tubes vertical arrangement in the bottom of the tank.

The small holes which diameters are 3mm, 4mm and 5mm on the steam diffusion tube are arranged according to certain rules and angel to ensure that the steam spread in the tank evenly.

Thus it can prevent the different quality of the product because of the uneven steam.

After set working procedures, the heating, heat preservation, vulcanization and etc can be finished by automatic control system.

The equipment stop working and give alarm after all procedures finished.

Working principle for electricity steam vulcanizing autoclave Electric heated tubes are arranged in the bottom of the tank according to certain rules, the heat ex-changer linked the electric heated tubes and the water channel.

The height of the sink is 5~15mm.

The steam which produced by electric heated tubes and water spread from down to up evenly until turn into condensate water pour into the sink after touched the wall of tank and then heat again.

The temperature of the tank evenly and the pressure has no error, so it can prevent the different quality of the product because of the uneven temperature and pressure.

After set working procedures, the heating, heat preservation, vulcanization and etc can be finished by automatic control system.

The equipment stop working and give alarm after all procedures finished.
