Pvc Plastic Vinyl Production Line Stone Floor Extrusion Machinery - China

PVC plastic vinyl floor production line / Stone PVC floor extrusion machinery, PVC Board Extrusion Line, PVC Plastic Artificial Marble Sheet Production Line

PVC Board Extrusion Line

PVC Plastic Artificial Marble Sheet Production Line

PVC Edge Banding Machine

PVC Electric Conduit Pipe Making Machine

PVC Corner Profile Production Line

PVC & PE Single Screw Extruder

Brand Name: BOGDA; Floor thickness: 4-6mm; Raw material: PVC powder, Caco3, CPE, ACR, etc; Production speed: 0-6m/min; Mould width: 1320mm and 1050mm; Type: Plastic sheet extrusion line

Product Descirption

PVC plastic floor also named Rigid vinyl plank, which is new environment-friendly flooring, with zero formaldehyde, mildew, moisture, fire, pest control, simple installation.

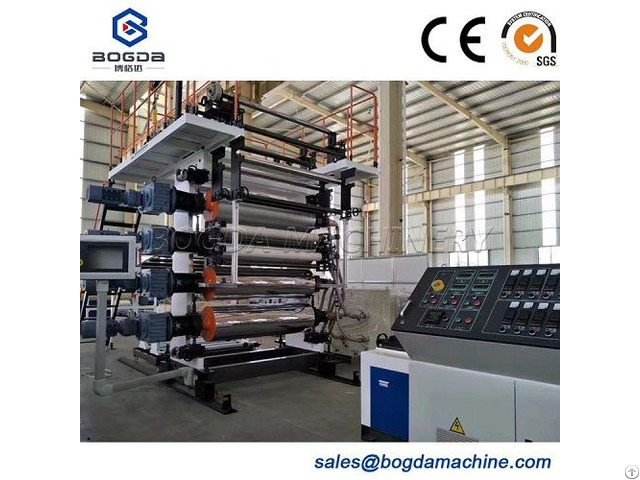

PVC plastic floor is extruded by extruder and T-die extrusion PVC substrate, with three-roll or four-roll calender, respectively, PVC wear layer, PVC color film and PVC substrate, one-time heating paste, embossed products, The process is simple, close by heat to complete, do not need glue.

Double layer 0.5-2mm thick PVC floor production line

NO.

Machine Name Qty.

1 SJSZ92/188 Conical twin screw extruder 1 set

2 Hanger plate mold 1 set

3 Four-roll calender 1 set

4 Cooling bracket + trimming device 1 set

5 Four-site coating + correction device 1 set

6 Traction machine 1 set

7 Precision cutting plate machine 1 set

8 Feeding device 1 set

Specifications for double layer 0.5-2mm thick PVC floor production line

1 Use raw materials PVC plus accessories

2 Production line speed 0-6m / min

3 Maximum yield 600-800kg / h

4 Total installed power 200kw

5 Actual energy consumption 140kw

6 Air consumption 0.4m3 / min

7 Air pressure 0.6mpa

8 Water circulation 0.3m3 / min

9 Working temperature 0-40°C
