Acrylic Wood Laser Engraving Machine Cutter Fast Speed 1626 - China

Features 1 - Use 3mm steel plate platform component machine box, integrate the sports system with the laser system, and the mechnical system and laser system work more stably.

2 - Adopt DSP digital chip control interface card, may compatible CorelDRAW, CAD direct output, support BMP, PLT, AI, DST, DXF file format etc.

3 - Adopt three imported linear guide rail, 3M synchronous belt and use America chip drive, match up big torque synchronous motor, so that the cutting precision and curve accurately smoother.

4 - The stability of high efficiency laser power and big power, the little flare, high response of lasers, give full play to the potential of the machine.

5 - Flight light way system adopts the wear resistance of metal molybdenum mirrors and import focus lens, and greatly reduce the operation cost of the machine.

6 - Adopt slow down synchronization idle wheel, further improve the cutting precision and processing surface smoothness.

7 - Adopt water protection switch, it can protect the laser tube well.

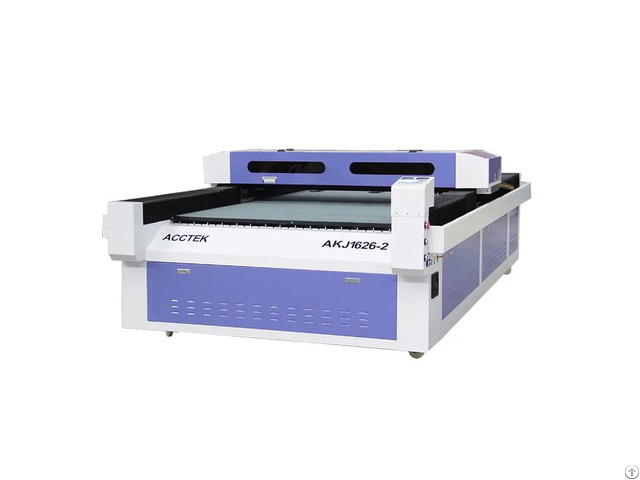

application &samples Applicable materials: acrylic, wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials Applicable industries: advertisement, gift, shoes, toys, sign making, computers, garments, model cutting, building, packaging, paper industry Technical parameters model AKJ1626-2

Working area 1600*2600mm

Laser Power 80W / 100W /130w/150w/260w ( optional )

Laser Type Hermetic CO2 glass tube

Power Supply AC220±10% 50 HZ / AC110±10% 50 HZ

Max Moving Speed 1500mm/s

Locating Precision <0.01mm

Min Shaping Character Character: 3x3mm, Letter: 2x2mm

Operating Temperature 5 oC -35 oC

Resolution ratio ≤4500dpi

Control Configuration DSP

Data Transfer Interface USB(offline)

Worktable honey comb worktable/up and down/aluminium knife/ steel nail (optional)

System Environment WINDOWS 2000/ WINDOWS XP

Cooling Way Water Cooling and Protection System

Graphic Format Supported files which CorelDraw, Photoshop, AutoCAD can identify

Compatible Software CorelDraw, Photoshop, AutoCAD

Cutting Thickness 025mm/30mm(depends on different material)

Color Separation Separation of cutting up to 256 colors

Sloping Engraving Yes, slope can be designed discretionarily

Cuts off the water supply the protection Yes

Packing plywood case Details photos 1 - For laser tube, we use RECI brand, very popular among customers, its lifetime is 3 times longer than common laser tubes.

2 - We use stepper motor, providing enough power, ensuring high speed of machine.

3 - We use Taiwan HIWIN/PMI linear rail for transmission, to ensure high precision, faster speed, lower noise, and its lifetime is 10 times longer than common rail ways.

4 - we have two kinds of worktable: Aluminum knife table for hard material like wood, acrylic, helping small cutted pieces fall off; and honeycomb worktable for soft material like leather, cloth, to keep the material as flat as possible, ensuring cutting effect.

If you work on both hard and soft material, we can make the table with double use.

5 - The control system is DSP, supporting offline work.

There is USB interface on the panel, so it support U disk, very convenient.

6 - We use Updated RD software LaserworkV8, the latest version.

7 - Red dot will help position the laser, protecting operator.
