Aol Co2 Laser Engraving And Cutting Machine - China

NO.

1 Function Features: 1 - High stability and high strength mechanical structure, high speed, high precision, long-term operation without adjustment 2 - The stability and integrity design idea with advanced industry cooling system and water alarm Automatic Protection Function, improve the stability and safety of continuous operate.

3 - Optical Accessories adopts best imported K9 mirrors and ante focusing mirrors whose reflectivity and transmittance is the best with more detailed spot, more cutting edge .

3 - DSP control: Based on upper control unit of PC-PCI, adopt advanced DSP-TMS320, XC2S300 control chip with high speed, stability, anti-interference ability.

Advanced USB control and Flash

Disk (U Disk) off-computer control system are optional.

4 - Independent R & D efficient laser power: Adopt new high-voltage switch-mode, PWM master control technology, which is more stable.

NO.

2 Applicable Industry:

1 - Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone, leather, marble, shell.

2 - Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.

3 - Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats, toys, etc.

4 - Model Industry: Production of construction sand table model and Aircraft Model, etc.

ABC plate cutting, MLB cutting.

5 - Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate, etc.

6 - Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.

7 - Product Identification Industry: Security marking products, etc.

NO.

3 Applicable Material:

Glass, organic glass, leather, cloth, acrylic, wood, MDF, PVC, Plywood, stainless steel, Maple leaf, Double-color sheet, bamboo, Plexiglas, paper, leather, marble, ceramics, etc.

NO.

4 Parameters

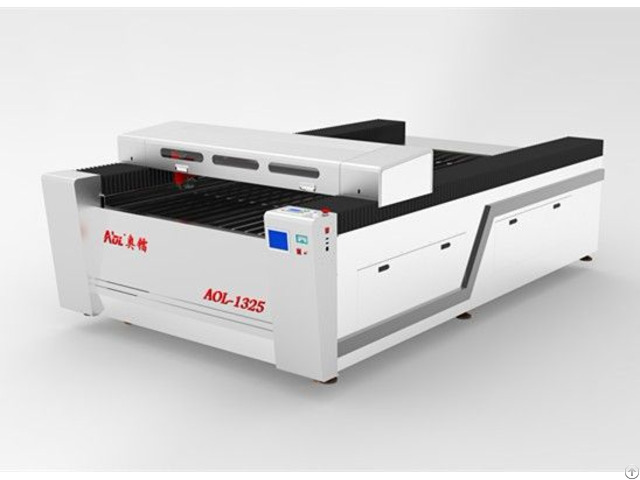

Model: AOL-1325 Engraving and Cutting Area: 1300*2500mm Tube type: CO2 sealed glass tube Laser wave: 10.6um Laser Power: RECI-80W (100W;130W;150W;180W) Cooling: Pure water cycle Engraving Speed: 0-60, 000mm/min Cutting Speed: 0-30, 000mm/min Reposition Accuracy: ±0.01mm Minimum Character Size: English: 1mm ; Arabic numbers: 1mm Resolution: 1, 000--10, 000 dpi File output mode: 2.0 USB interface Machine Power: <3, 000W Support Format and Software: PLT, DST, DXF, DWG.

CDR, AI, Auto CAD, Coreldraw, Photoshop, laser cut 5.3 Working Environment Temperature: 0-45°C Drive system: Leadshine DC Stepper motor Control system: Leetro DSP offline LCD control system Exhaust smoke system: Big exhaust fan ( Optional Air purified) Working Voltage: 220V, 50HZ/60HZ N.

W: 900KG G.

W: 1000KG Warranty time : 1 year for machine (12 months for RECI tube) Package: Wooden case Packing size: 3760*2040*1260mm Delivery time: 5 working days after received the deposit NO.

5 Packing & Delivery: 1) packing:

The whole film packaging machine;Anti-collision bag edge;No fumigated plywood wooden cases and trays with iron straps.

2) shipping:

We have contracted with a third party logistics company for many years, and our experience in transportation will guarantee your machine safety.

NO.

6 Contact If you have any questions about our machine, please don't hesitate to contact us!

AOL- Mey, jinan

Q Q : 2211823451

Wechat: Zhangyumei7511

Phone : +86 17854214039

WhatsApp: 008617854214039
