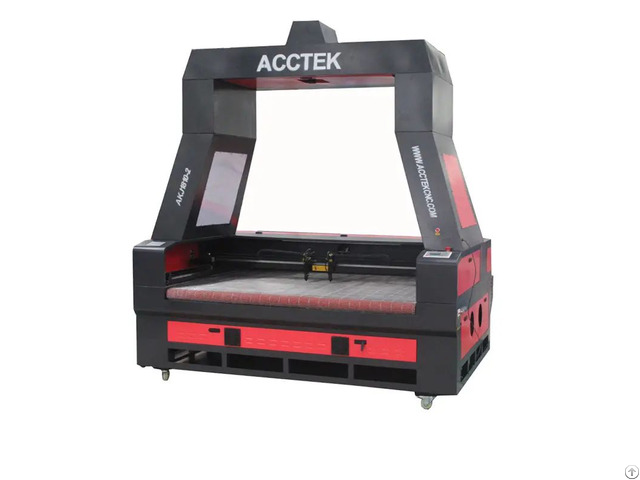

Ccd Camera Polyester Fabric Laser Cutting Machine For Textile - China

Items Parameter

Product name Auto feeding Co2 laser cutting machine

Processing area 1800mm*1000mm Laser power 60-180W

Laser type Sealed Co2 glass laser tube

Laser head Two independent head&source

Controller Ruida laser system with keypad

Working table Auto feeding transmission table

Following up system With autofocus system

Cooling mode Circulation water cooling and protection system

Transmission and rails Taiwan HIWIN linear guide rails and Fulong belt and pinion Positioning accuracy ±0.05mm Compatible Software Laser cut /CorelDraw/AutoCAD/Photos hop Engraving speed 1-8000mm/min

Cutting speed 1-6000mm/min

Position system Red dot

Feeding system Auto feeding unit with correction function

Minimum shaping character letter 0.5mm, Chinese 0.5mm

Support graphic format DST, PLT, BMP, DXF

Driving mode Stepper motor

Air pump With

Exhaust fan With

Working voltage AC 110 - 220V±10%, 50 - 60Hz or depend on customer

Operating temperature 0-45°C

Operating humidity 5-95%

Options Up and down working table

Rotary attachment for column materials

Chiller CW3000-6000

Multi-head

Guarantee time 2years Advantage: This type Laser Cutting Machine with co2 laser tube is mainly used to cut computerized embroidery labels, irregular labels, embroidery craftwork, print fabric, textile, badge, trademark industries and other nonmetal materials.

This type Laser Cutter adopts CCD camera positioning automatically, high cutting speed, high precision, well cutting effect.

Sample & Application

This co2 laser cutting machine can use for cutting nonmetal material.
