Cnc Lathe With Slant Bed - China

cnc lathe with Slant Bed

slant bed lathe with programmable blowing

OEM slant bed lathe

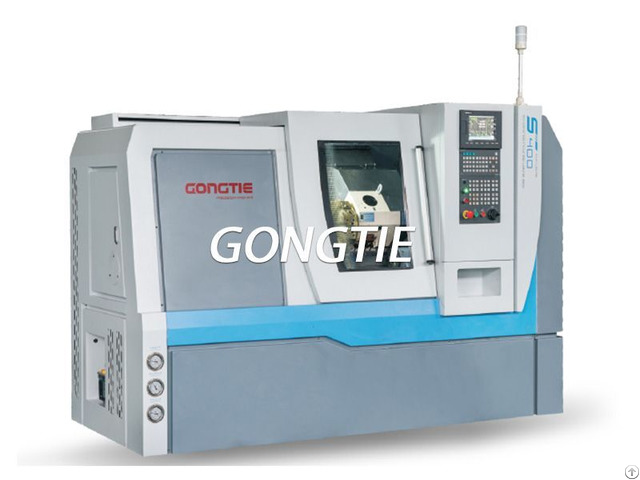

S400, S500, high precision, stability, high efficiency, is a high cost-Competitive CNC lathe for realizing the precision machining.

*High precision: importing components from Japan and Taiwan, through the advanced assembly and inspection technology, realizing the precise turning with tolerance of μ level.

*Stability: the high rigidity structure with whole set die-casting formation, makes the precision turning more stable.

*High efficiency: the best combination of precision and rigidity, makes the machining more efficiency.

S400C, S500C(Synchronous electric spindle)-the best selection for substituting the imported lathes.

*More precision：the complete Synchronous servo configuration for the spindle and the X/Z axis, makes the processing accuracy get a new break through.

*Higher speed: the superior Synchronous electric spindle makes the spindle perform higher, faster, and more stable.

*More efficiency: the complete Synchronous control for the core parts(all the axis), makes the processing efficiency better.

Main parameters Unit S400 S400II S400C S400IIC

Capability Max.

swing diameter mm 400/160 578/290 400 500 Max.

turning length mm 340/320 380/360 340/320 380/360 Max.

bar through-hole mm 40(45) 50 40(45) 50

Axis Stroke X-axis travel mm 155 200 155 200 Z-axis travel mm 400 430 400 430 W1-axis travel mm 290 360 290 360

Rapid Traverse X/Z-axis m/min 20 20 20 20

Spindle Spindle nose size N/A A2-5 A2-6 A2-5 A2-6 Spindle hole through diameter mm 56 61 56 61 Spindle servo motor power kW (asynchronous) 57.5/11 (asynchronous) 57.5 \ 11 synchronous electric spindle synchronous electric spindle Spindle speed range rpm 0～4000 0～4000 0～4500 0～4500 Work piece clamping method N/A 6"/8" hydraulic chuck 6"/8" hydraulic chuck 6"/8" hydraulic chuck 6"/8" hydraulic chuck

Tailstock Tailstock sleeve stroke mm 100 100 100 100 Tailstock sleeve diameter mm φ80 φ80 φ80 φ80 Tailstock sleeve boring-hole N/A MT4 MT4 MT4 MT4

Toolholder Number of tools PCS 8(10\12) 8(10\12) 8(10\12) 8(10\12) Toolholder type N/A hydraulic(servo)turret hydraulic(servo)turret hydraulic(servo)turret hydraulic(servo)turret Toolholder center height in radial mm 85 105 85 105 Tool size mm 25*25 25*25 25*25 25*25 Boring rod diameter mm 32 32 32 32

Accuracy X\Z axis repeating postioning accuracy mm 0.002 0.002 0.002 0.002

Others Cooling motor capacity L 120 120 120 120 hydraulic box capacity L 60 60 60 60 Required electric power kVA 15 20 15 20 Height from floor to spindle center mm ≈950 ≈1020 ≈950 ≈1020 Overall size(L*W*H) mm 2500*1850*1800 2700*1900*1830 2500*1850*1800 2700*1900*1830 Net weight kg ≈2700 ≈3300 ≈2700 ≈3300

Standard tool box, instruction, manual, cooling system, lighting system, lubricating system, hydraulic chuck, foot switch, chip conveyor.

Optional programmable blowing function, precision C-axial division, living tool, auto door, loading & unloading system, industrial robot, auto bar feeder, parts catching device, chip conveyor, auto detecting system, auto tool compensation system, high pressure cooling system.
