CNC lathe with station rotary stocker

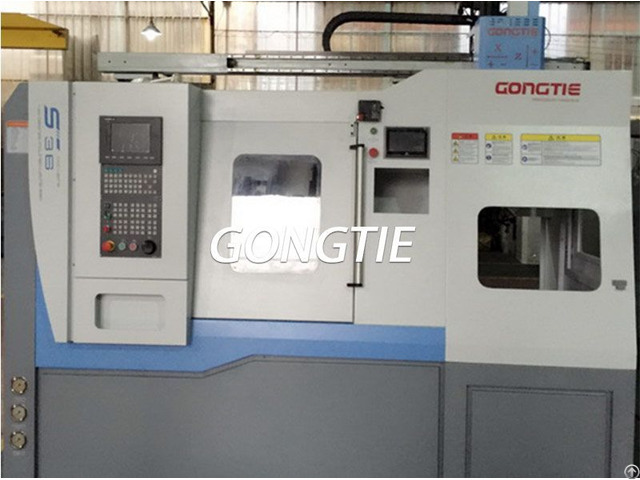

Precision CNC lathe with gantry loader plus 20 station rotary work stocker

1 - Precision CNC lathe with inclined bed, can improve the machine rigidness.

2 - The CNC lathe with chips conveyor, which can better deal with the chips.

3 - The 20 station rotary work stocker, which can put more raw materials for machining stand-by.

4 - With the gantry loader, which can improve the production efficiency and save labor cost.

5 - The added security switch on the door can better make sure the production security system.

Q series-precise linear guide-way with flat bed in blade row : Q5, Q7, Q5C, Q7C

S series-precise linear guide-way with flat bed in blade row : S36, S350

with the features of high precision, high speed, high efficiency, is the ideal selection for substituting hard rail lathes and imported lathes.

* High precision: importing components from Japan and Taiwan through the advanced assembly and inspection technology, realizing the precise turning with tolerance of μ level.

* High speed: more than 5000RPM for spindle, rapid traverse 20m/s, to reach the high speed machining.

*High-efficiency: with the concept of technique innovation and application oriented, and sustainability improve the overall performance, to make the processing more efficiency.

* Stability: high quality requirement and strict selecting for all the components, to make the machine performance more stable.

(Synchronous electric spindle)- the best selection for substituting the imported lathes.

* More precision: the complete Synchronous servo configuration for the spindle and the X/Z axis, makes the processing accuracy get a new break through.

* Higher speed : the superior Synchronous electric spindle make the spindle perform higher, faster, and more stable.

* More efficiency: the complete, Synchronous control for the core parts (all the axis), makes the processing efficiency better.

In this technical solution, we use gantry loader plus one 20-position stocking bin to realize the automatic processing & picking paratypic pan or disk - type work pieces.

Main parameters UNIT S36 S36C S350 S36D S350D

Capability Max.

swing diameter mm 300 300 350 300 350 Max.

turning diameter mm 270 270 350 270 350 Max.

turning length mm 330 330 420 330 420 Max.

bar through-hole mm 26(35) 26(35) 40 26(35) 40

Axis Stroke X-axis travel mm 420 420 420 330 330 Z-axis travel mm 330 330 330 420 420

Rapid Traverse X/Z-axis m/min 20 20 20 20 20

Spindle Spindle nose size N/A A2-5 A2-5 A2-5 A2-5 A2-5 Spindle servo motor power kW 3.7/5.5 3.7/5.5synchro

nous electric spindle 5.5/7.5 3.7/5.5 5.5/7.5 Spindle speed range rpm 0～5000 0～5000 0～4500 0～5000 0～4500 Work piece clamping method N/A 36 collet

(5'hydraulic chuck) 36 collet

(5'hydraulic chuck) 6' hydraulic

chuck(42 collet) 36 collet

(5'hydraulic chuck) 6' hydraulic

chuck(42 collet)

No.

of tools Number of tools PCS 5 5 5 3+8 3+8

Tool holder Tool holder type N/A T-slot blade row+spindle head T-slot blade row+spindle head T-slot blade row+spindle head T-slot blade row+63turret+s pindle head T-slot blade row+63turret+spi ndle head Tool holder center height in radial mm 62 62 62 62 62 Tool size mm 20*20 20*20 20*20(25*25) 20*20 20*20(25*25) Boring rod diameter mm 25 25 25 25 25

Accuracy X\Z axis repeating postioning accuracy mm 0.002 0.002 0.002 0.002 0.002

Others Cooling motor capacity L 120 120 120 120 120 hydraulic box capacity L 60 60 60 60 60 Required electric power kVA 12 12 14 15 15 Height from floor to spindle center mm ≈1070 ≈1070 ≈1070 ≈1000 ≈1000 Overall size(L*W*H) mm 1850*1750*1750 1850*1750*1750 1850*1750*1750 1850*1750*1750 1850*1750*1750 Net weight kg ≈2400 ≈2400 ≈2400 ≈2600 ≈2600

Standard configuration: Tool box, instruction book, operational manual, cooling system, lighting system, lubrication system, chips cleaner, hydraulic collet(chuck), foot switch.

Optional configuration: program control blowing function, precision C axis dividing, power spindle head, automatic door, loading and unloading system, industrial robotic, automatic bar feeder, receiving device for bar materials, automatic detection system, automatic cutter radius compensation system, high-pressure cooling system.
