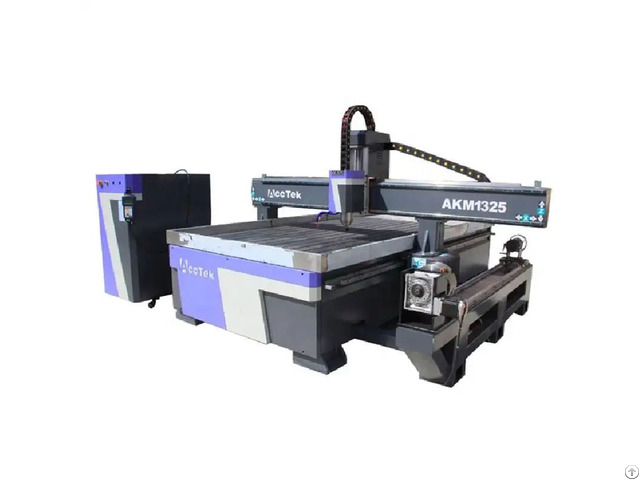

Cnc Router For Sale 4 Axis - China

Working Area

1300*2500*200mm

Traveling Positioning Accuracy

±0.03/300mm

Repositioning Accuracy

±0.03mm

Table

T-slot Table

Frame

Welded Structure

X, Y axis

helical rack 1.25M, Hiwin 20# Rail Linear Bearing

Z axis

Hiwin Rail 20# Linear Bearing & Taiwan TBI Ball Screw

Max.

Power Consumption

(Without Spindle) 2.5kw~3Kw

Max.

Rapid Travel Rate

33000mm/min

Max.

Working Speed

25000mm/min

Spindle Power

3.0kw water cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

Leadshine easy servo motor

Working Voltage

AC380V/50/60Hz, 3PH (Option: 220V)

Command Language

G Code

Operating System

Mach3 Control System

Computer Interface

USB

Flash Memory

128M(U Disk)

Collet

ER25

X, Y Resolution

<0.01mm

Software Compatibility

Type3/UcancameV9/Artca m Software

Running Environment Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

Dust collector：

All dust residue is controlled with a small area by employing the brush of the dust hood on the spindle to get the residue

vacuumed away into the dust bags .

Servo motor :

Faster speed with signal feedback .

Low heat radiation .

Run smoothly at ultra-low speed.

Reduce the vibration, avoid oscillation .

Efficient torque enhancement .

Rotary device :

It is with a 3-jaw chuck, tail stock, and linear guide track for easy tail stock movement and center alignment.

It adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.

Oil mist Coolant System:

It is ideal for coolant tools for cutting metal.

The unit's microdispenser delivers a very small amount of high-performance vegetable-based lubricant to the cutting tool by atomizing the lubricant in a high-velocity air stream.

The result is higher material removal rates, improved finish, tighter tolerances and increased productivity.
