Cnc Wood Milling Machine 1500 3000mm - China

price: 5100.00 Dollar US$

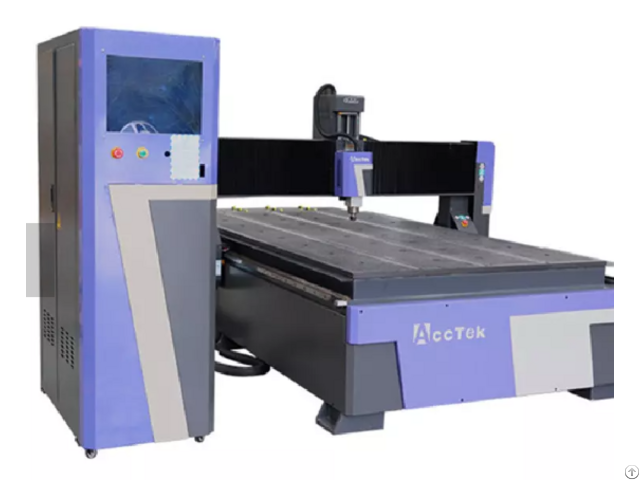

Cnc Wood Milling Machine 1500 3000mm

Products Photos Catalog Cnc Wood Milling Photos Catalog

Description

Parameter

Model

AKM1530

Working Area

1500×3000×200mm

Spindle Motor

3.2KW water cooling spindle or 3.5KW air cooling spindle

Worrking Mode

Leadshine driver and stepper motor

Control System

MACH3 control system

Drive Mechanism

Rack and pinion on x, y axis, z axis Taiwan TBI ball screw

Table Surface

Vacuum&T-slot table

Frame

steel structure

Motion Positioning Accuracy

±0.3/300mm

Repositioning Accuracy

±0.03mm

Max Motion Speed

40, 000mm/min

Max Engraving Speed

20, 000/min

Rotating Speed of Spindle

2, 4000rpm

Z-axis setting Auto Z origin tool sensor

Dictate Format

G code, *.

u00 - mmg, *.

plt

Operating Voltage

3phase 380v//220v 50Hz/110v 50-60HZ

Software

Artcam software

Packing Size

3640*2250*2030

Lubrication System

Oil lubrication system

Net weight/Gross Weight

1350kg/1500kg


Company Contact:


  • Phone: +086-0531-86160023

  • Address: 3-1007, Minghu Plaza, No. 777 Minghu West Street, Jinan City, Shandong , China

  • Email: Email


Published date: December 13, 2022

  • Business Description: CNC Router,Auto Tool Changer Machine,3 Axis CNC Router,5&4 axis CNC Router,CNC Router For Stone,CNC Router For Metal,Multi heads CNC Router;CO2 Laser Machine,Fiber Laser Cutting Machine,Laser Marking Machine;Oscillating Knife
